CTA2 Torque and Angle Wrench
- Digital angle torque wrench with snug and angle setting functions for production use.
- Bluetooth®-equipped versions are also available. Add-BT to model name: CTA2-G-BT.
- Allows for wireless transmission of collected data.
- Applicable in angle-controlled bolt tightening in small-lot production for maintenance and after-sales service, or back up for angle-tightening nut runners.
- Designed for angle tightening in sequence for flange-shape bolt arrangement (e.g. cylinder head).
- Includes software for data management through PC.
- As tightening passes the snug torque, the values on the display switch to angle values. Upon reaching the set angle, the buzzer goes off, and LED turns on to signal completion.
- Applicable for international use including the EU region.
- Compliant with calibration procedures of ISO 6789 Type I Class C.
- Tohnichi’s interchangeable head torque wrenches can be used with our interchangeable head lineup, making these wrenches ideal for a variety of work scenarios.
| Thumbnail | Name | Short description | Stock status | Price |
|---|---|---|---|---|

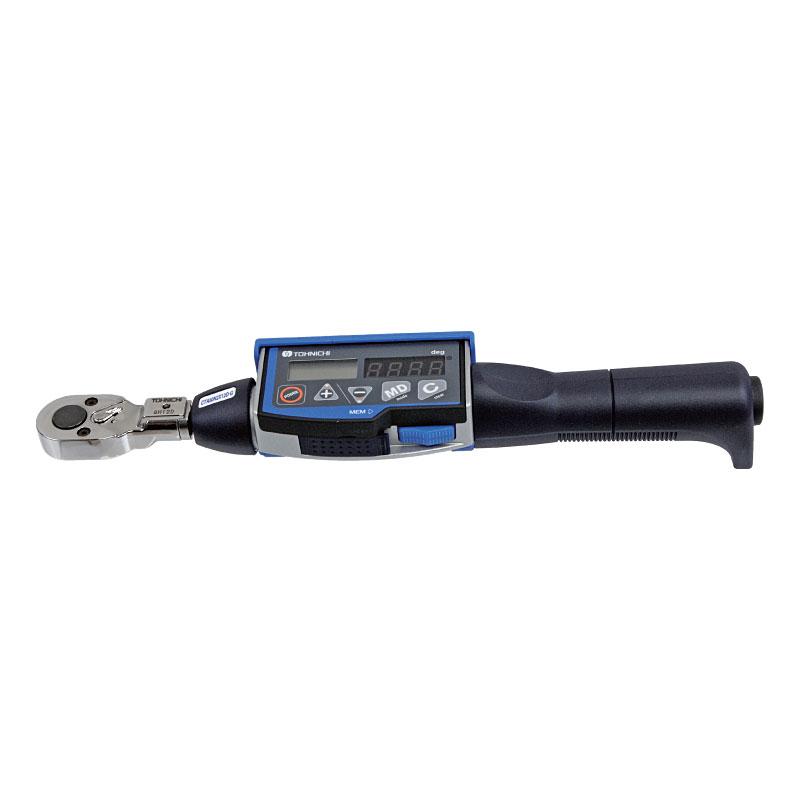

  | CTA50N2X12D-G | Digital Torque and Angle Wrench, (2.5) 10-50, 0.05N.m, (25) 100-500, 0.5kgf.cm, (22.5) 100-450, 0.5lbf.in, (1.85) 7.5-36.5, 0.05lbf.ft, 3/8" Square Drive | On backorder item(s) | $1,306.00 |

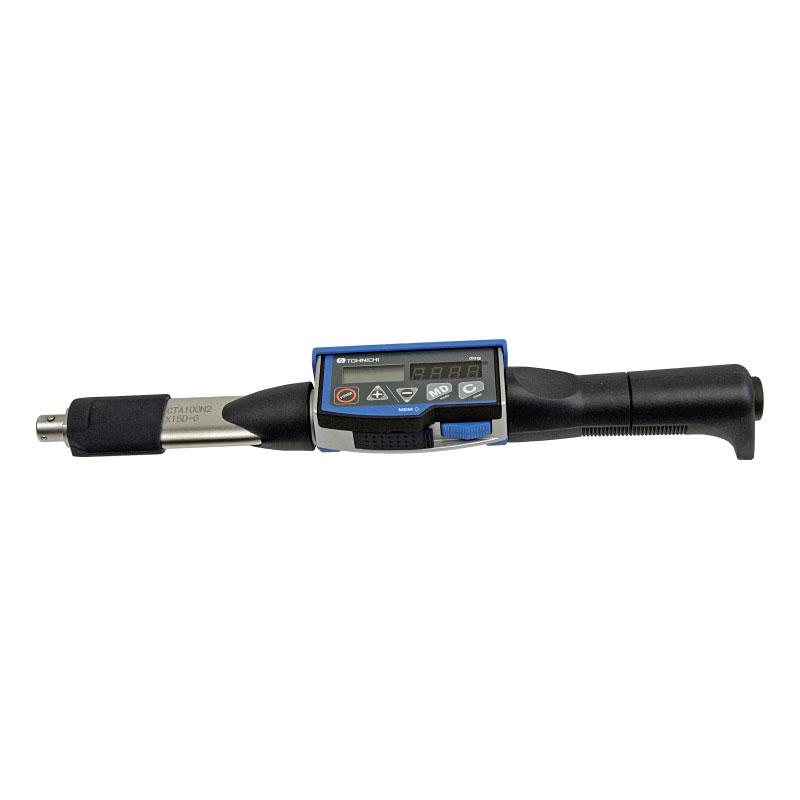

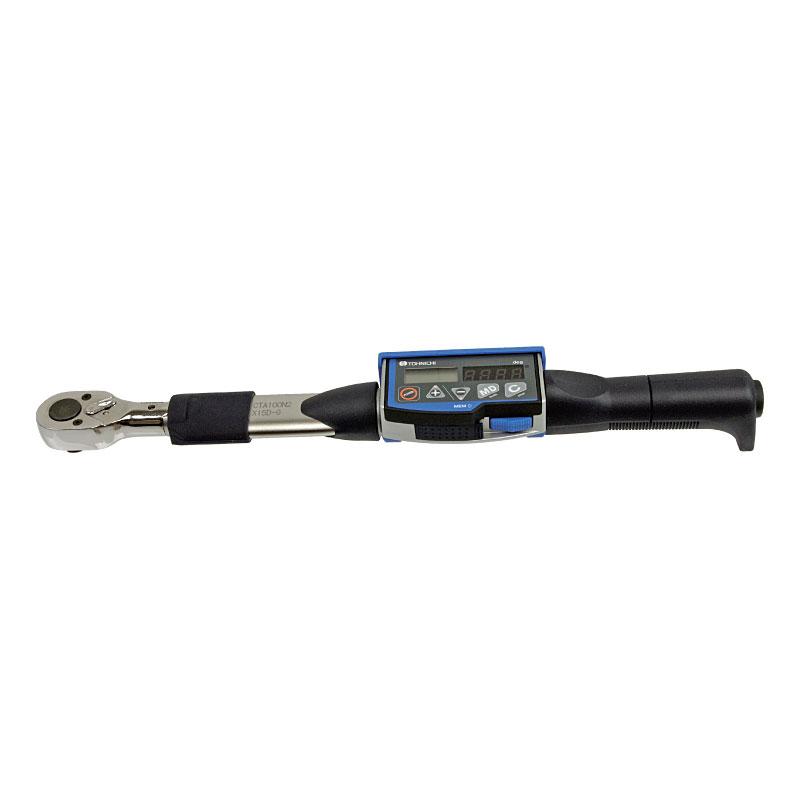

  | CTA100N2X15D-G | Digital Torque and Angle Wrench, (5) 20-100, 0.1N.m, (50) 200-1000, 1kgf.cm, (45) 200-900, 1lbf.in, (3.8) 15-75, 0.1lbf.ft, 1/2" Square Drive | In stock2 item(s) | $1,306.00 |

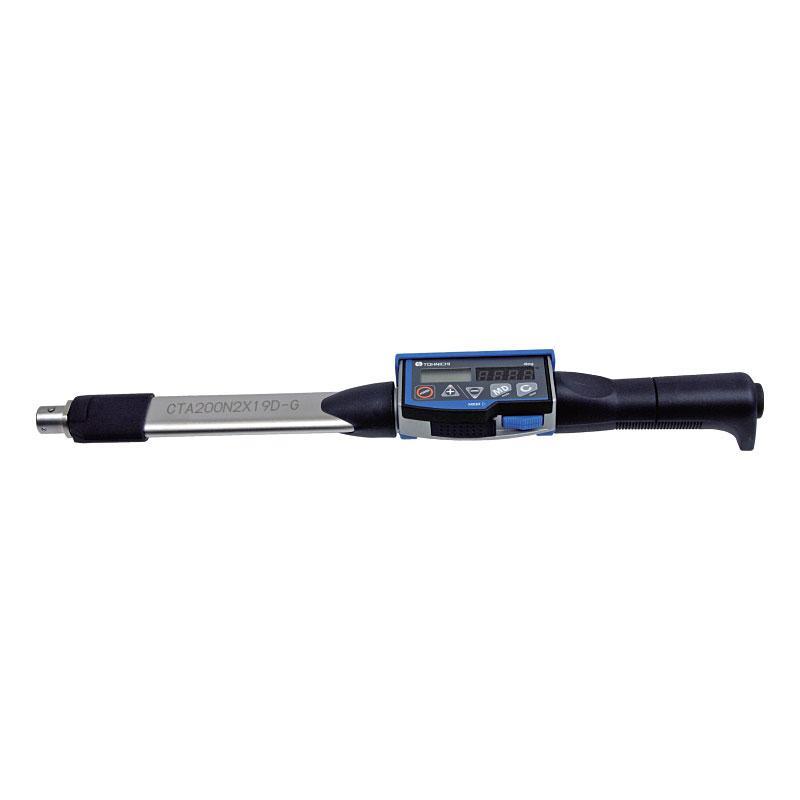

  | CTA200N2X19D-G | Digital Torque and Angle Wrench, (10) 40-200, 0.2N.m, (1) 4-20, 0.02kgf.m, (88) 350-1750, 2lbf.in, (7.5) 30-150, 0.2lbf.ft, 1/2" Square Drive | On backorder item(s) | $1,364.00 |

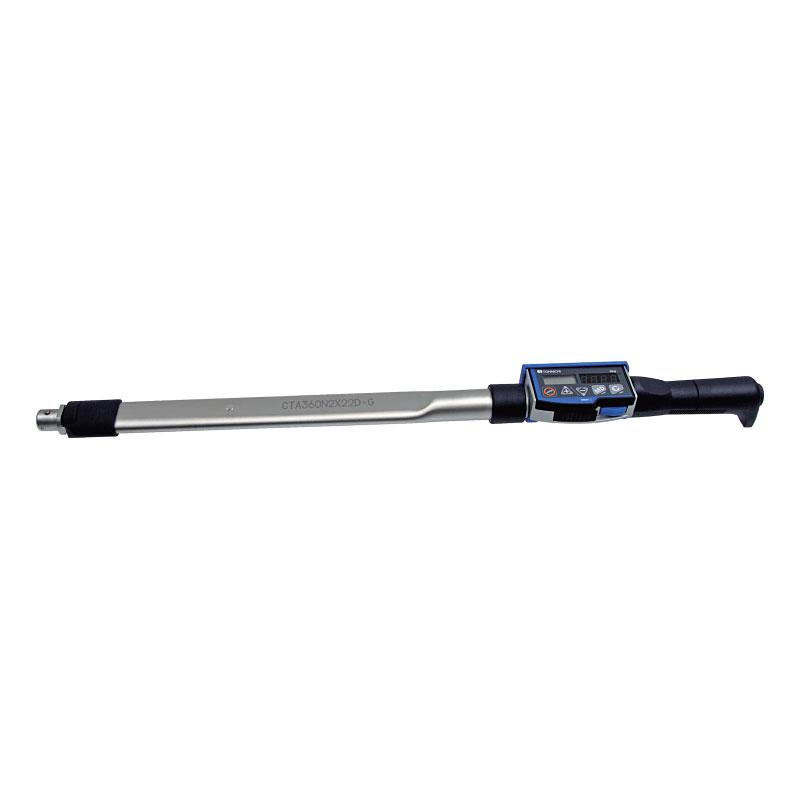

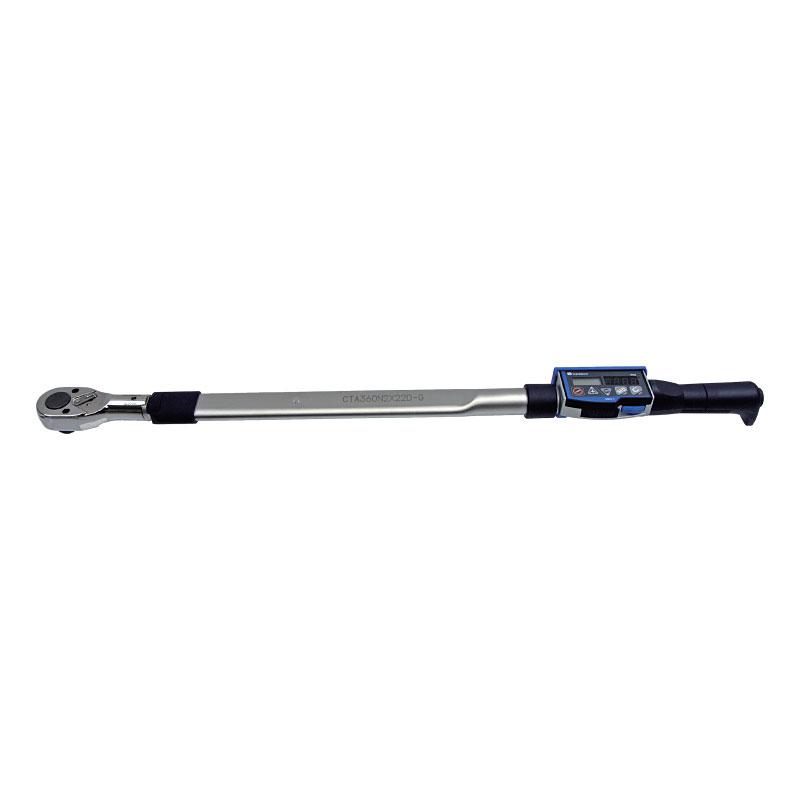

  | CTA360N2X22D-G | Digital Torque and Angle Wrench, (18) 72-360, 0.4N.m, (1.8) 7-36, 0.05kgf.m, (159)640-3150, 5lbf.in, (13) 52-260, 0.5lbf.ft, 3/4" Square Drive | In stock1 item(s) | $1,738.00 |

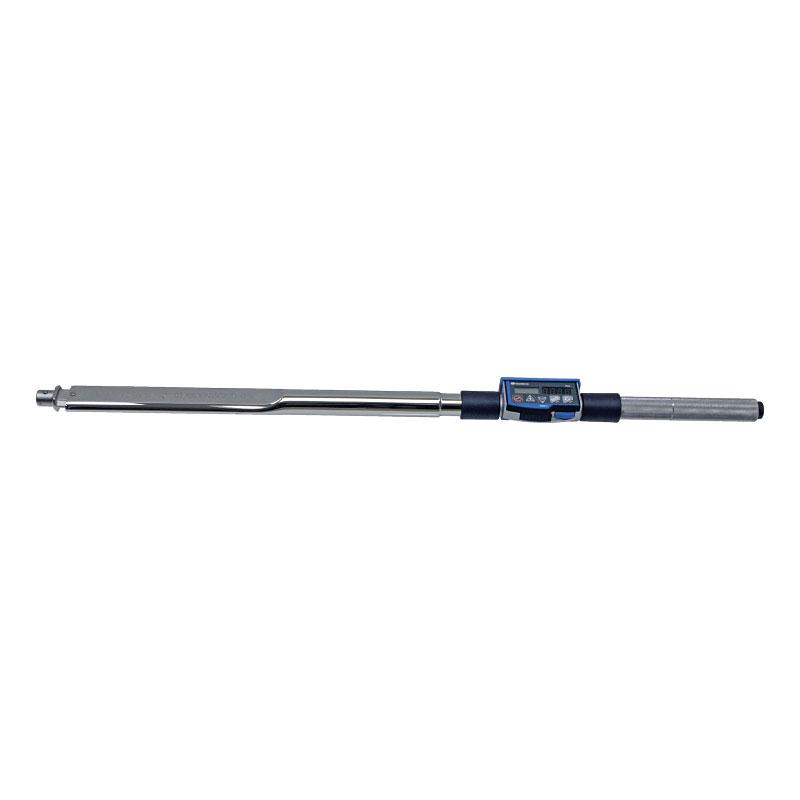

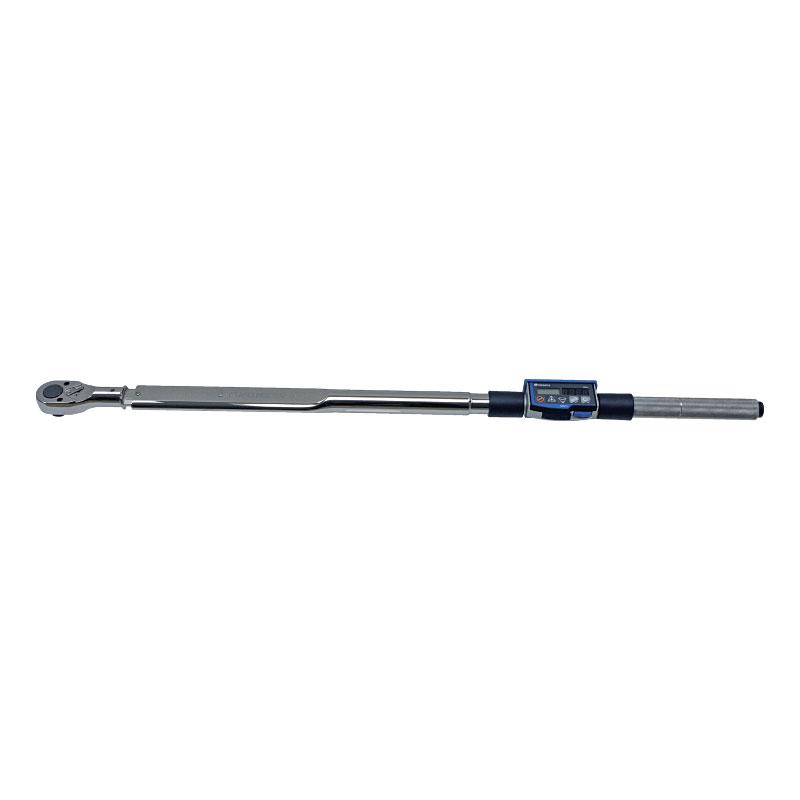

  | CTA500N2X22D-G | Digital Torque and Angle Wrench, (25) 100-500, 0.5N.m, (2.5) 10-50, 0.05kgf.m, (220)880-4400, 5lbf.in, (18) 72-360, 0.5lbf.ft, 3/4" Square Drive | On backorder item(s) | $2,166.00 |

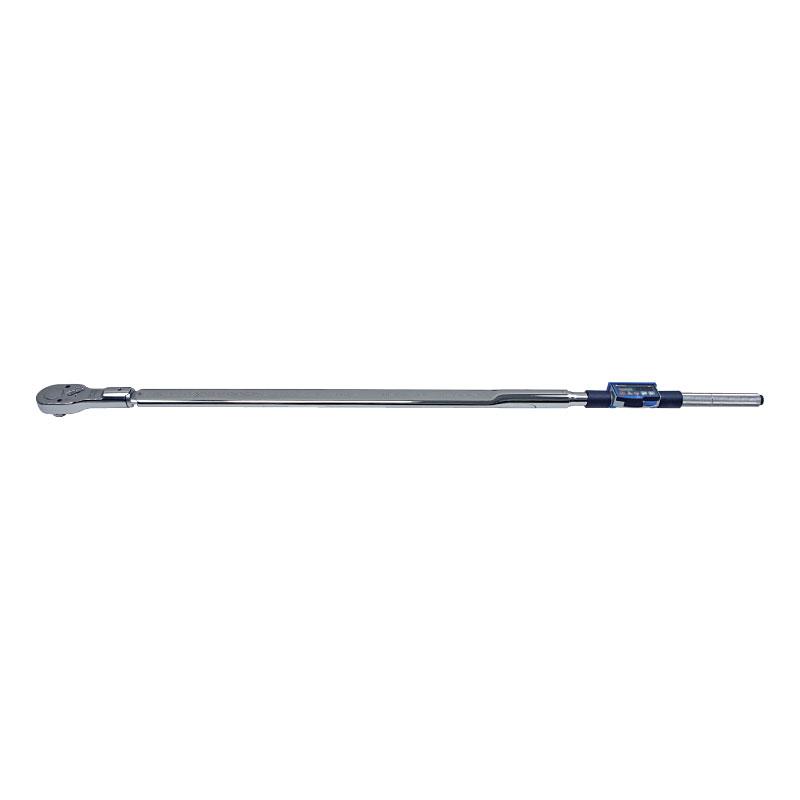

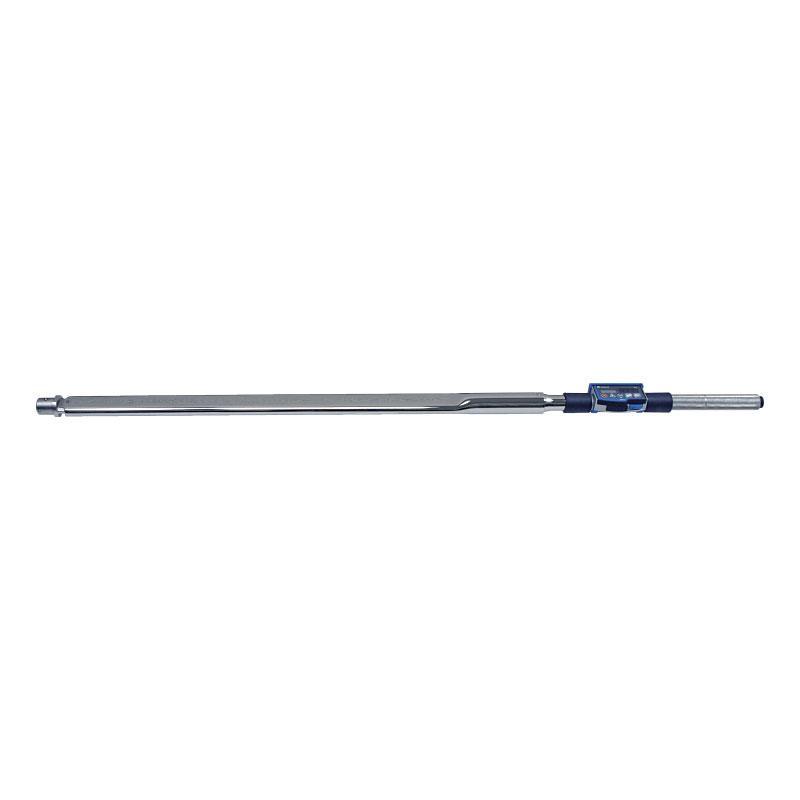

  | CTA850N2X32D-G | Digital Torque and Angle Wrench, (43) 170-850, 1N.m, (4.3) 17-85, 0.1kgf.m, (31) 124-620, 1lbf.ft, 1" Square Drive | On backorder item(s) | $3,333.00 |
