MCSP / MPCL Error Proofing Torque Wrench
Interchangeable open end head marking torque wrench. When the set torque is reached, the wrench automatically leaves a mark on nuts (bolts) to provide evidence of proper tightening.
- The MCSP is a preset type interchangeable open end head marking torque wrench. It automatically marks a corner of the nut (or bolt) on the side, when the set torque is reached.
- Conventionally, the tightening and marking procedure is a two-step process: (1) Tighten with a torque wrench; then (2) Make a mark with a pen. Tohnichi’s MCSP prevents a mark from being made if tightening was forgotten.
- The preset head is ideal for successive tightenings at the same torque.
- MCSP series torque wrenches come in a selection of three body types, permitting tightening torque applications from 10 to 140 N • m.
- MSH15D series interchangeable heads for the MCSP series offer a selection of 14 sizes. Interchangeable open end head dimensions (width across flats) of nuts (bolts) range from 12 to 32 mm.
- MSH15D series open-end interchangeable heads are more compact than those in the regular SH series, making them useful for marking where dimensions are restricted.
- Uses a disposable marker, so no need for ink refills. One marker performs about 2,000 markings. Marker replacement is easy. Also suitable for vertical marking.
Accessories
Wrench
| Thumbnail | Name | Short description | Stock status | Price |
|---|---|---|---|---|
 | MCSP50NX15D | Interchangeable Head Type Preset Marking Torque Wrench, 10-50N.m, 100-500kgf.cm, 88.5-442.5lbf.in, 15D | Out of stock item(s) | $662.00 |
| MCSP100NX15D | Interchangeable Head Type Preset Marking Torque Wrench, 20-100N.m, 200-1000kgf.cm, 177-885lbf.in, 15D | Out of stock item(s) | $705.00 |
| MCSP140NX15D | Interchangeable Head Type Preset Marking Torque Wrench, 30-140N.m, 300-1400kgf.cm, 265.5-1239.1lbf.in, 15D | Out of stock item(s) | $734.00 |
| MPCL50NX15D | Pre-Lock Style Spanner Type Marking Wrench, 10~50Nm, 0.5 NM Graduations, 15D Root Head Connection | Out of stock item(s) | $692.00 |
| MPCL100NX15D | Pre-Lock Style Spanner Type Marking Wrench, 20~100Nm, 1 NM Graduations, 15D Root Head Connection | Out of stock item(s) | $731.00 |
| MPCL140NX15D | Pre-Lock Style Spanner Type Marking Wrench, 30~140Nm, 1NM Graduations, 15D Root Head Connection | Out of stock item(s) | $820.00 |
Markers
| Thumbnail | Name | Short description | Stock status | Price |
|---|---|---|---|---|
| 1651 | Red Marker Refill for MCSP, pack of 10 | Out of stock item(s) | $49.00 |
| 1652 | Red Marker Refill for MCSP, pack of 100 | Out of stock item(s) | $432.00 |
| 1653 | Blue Marker Refill for MCSP, pack of 10 | Out of stock item(s) | $49.00 |
| 1654 | Blue Marker Refill for MCSP, pack of 100 | Out of stock item(s) | $432.00 |
| 1671 | Silver Marker End for 12-18mm Width MSH Head | Out of stock item(s) | $8.00 |
| 1672 | Black Marker End for 19-24mm Width MSH Head | Out of stock item(s) | $8.00 |
| 1673 | Gold Marker End for 26-32mm Width MSH Head | Out of stock item(s) | $8.00 |
Heads
| Thumbnail | Name | Short description | Stock status | Price |
|---|---|---|---|---|

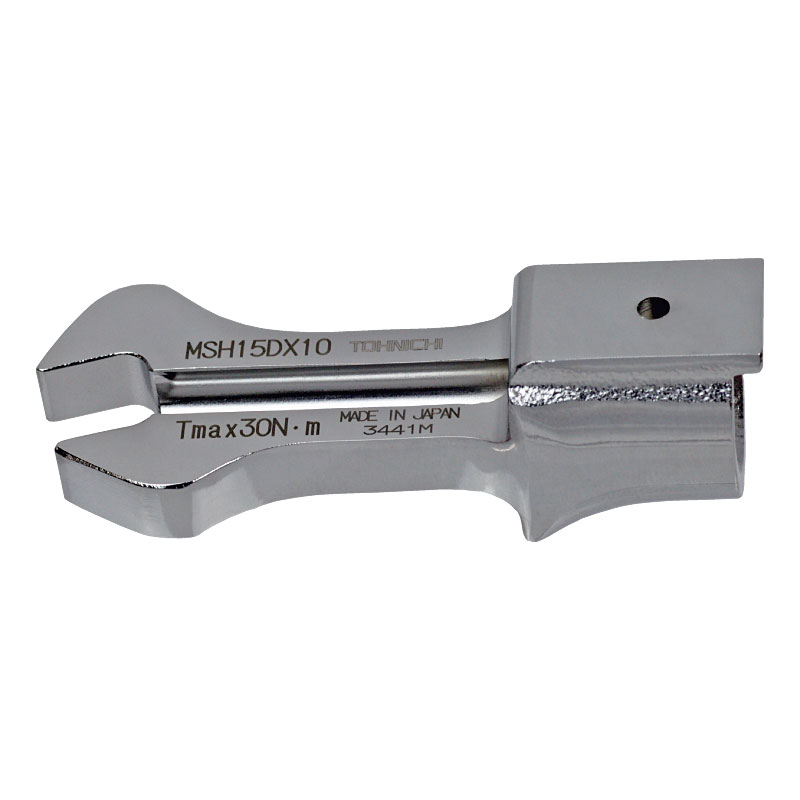

 | MSH15DX10 | Specialized Head Only for Use with Marking Wrench MCSP Opening Size 10mm Head Root 15D | Out of stock item(s) | $129.00 |

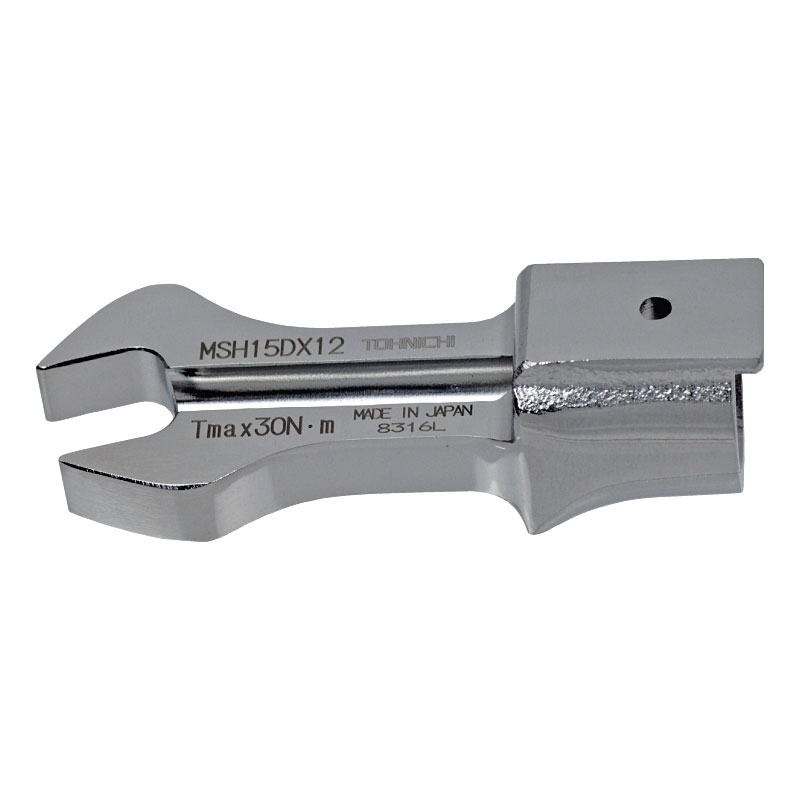

 | MSH15DX12 | Open End Head for MCSP, 15D, 12 mm Width, 30 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

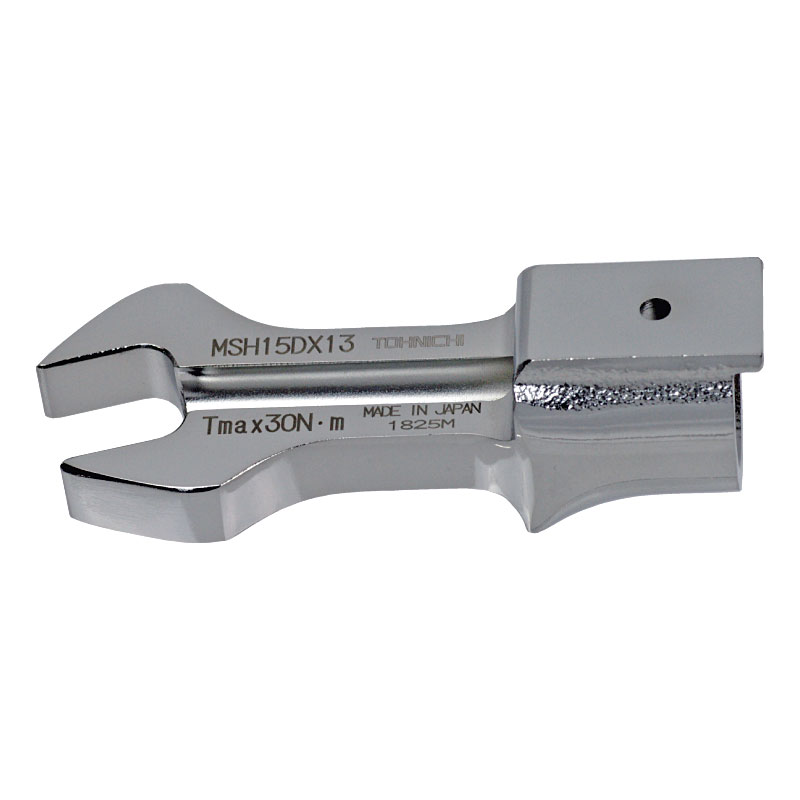

 | MSH15DX13 | Open End Head for MCSP, 15D, 13 mm Width, 30 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

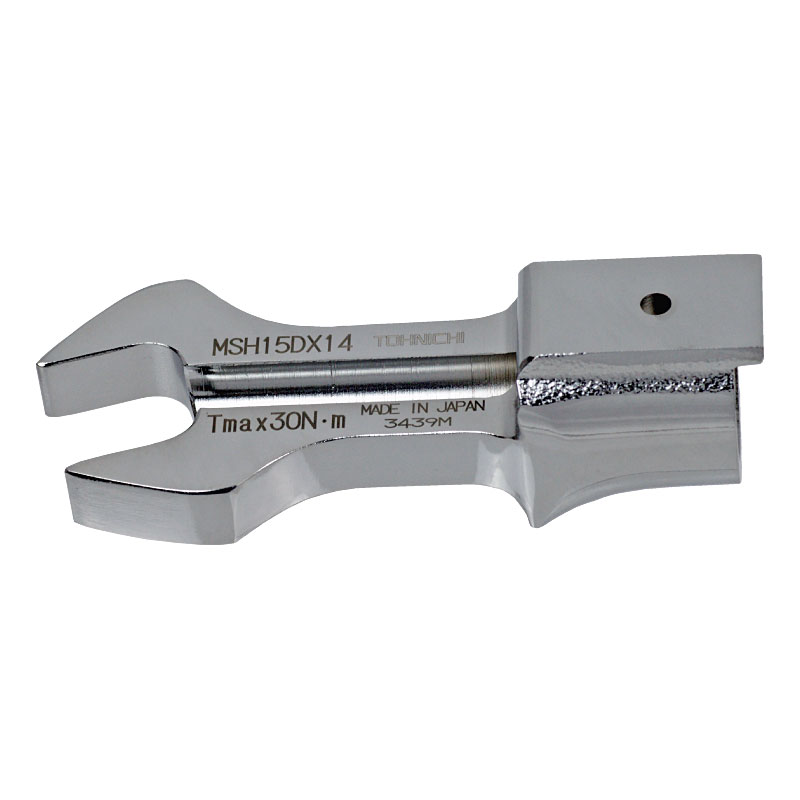

 | MSH15DX14 | Open End Head for MCSP, 15D, 14 mm Width, 30 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

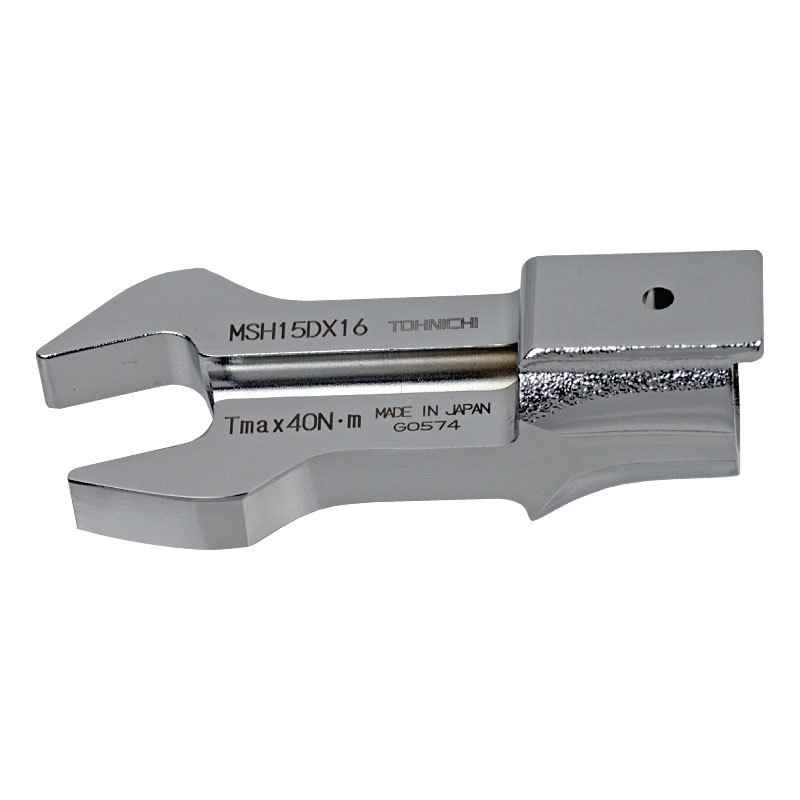

 | MSH15DX16 | Open End Head for MCSP, 15D, 16 mm Width, 40 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |
 | MSH15DX17 | Open End Head for MCSP, 15D, 17 mm Width, 55 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

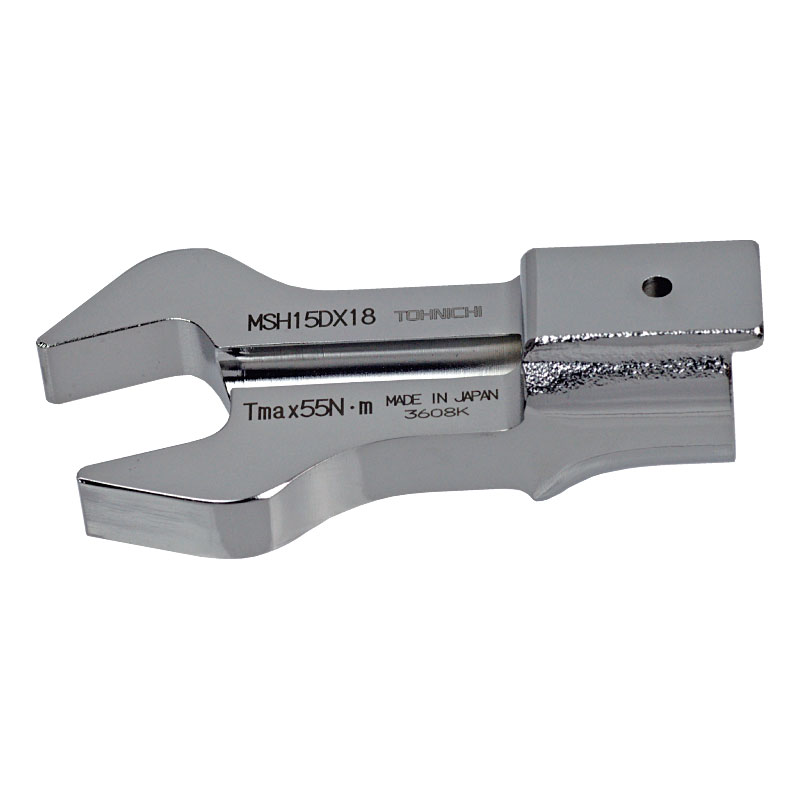

 | MSH15DX18 | Open End Head for MCSP, 15D, 18 mm Width, 55 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

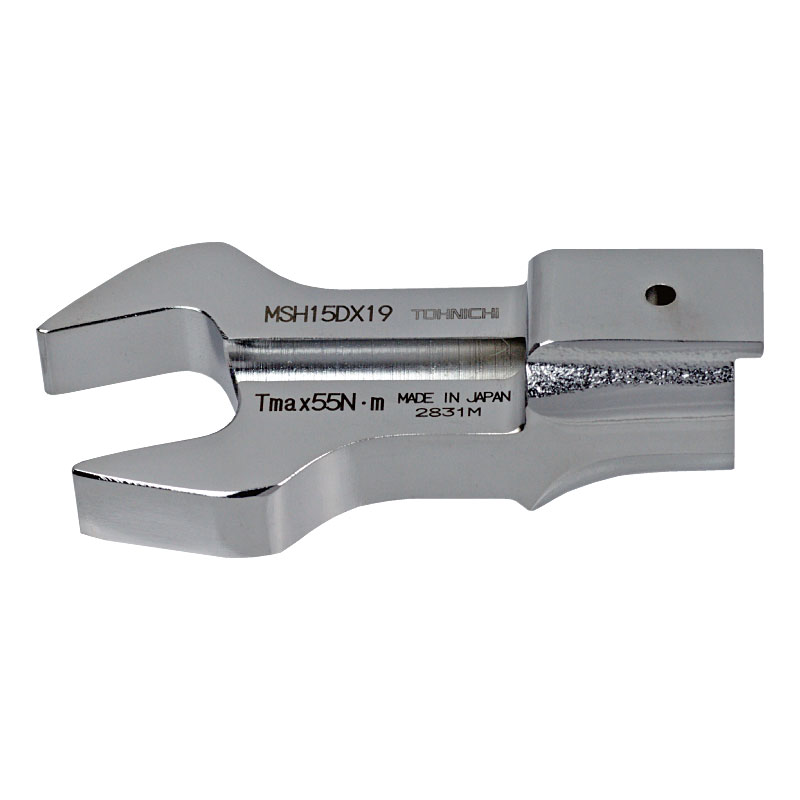

 | MSH15DX19 | Open End Head for MCSP, 15D, 19 mm Width, 55 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

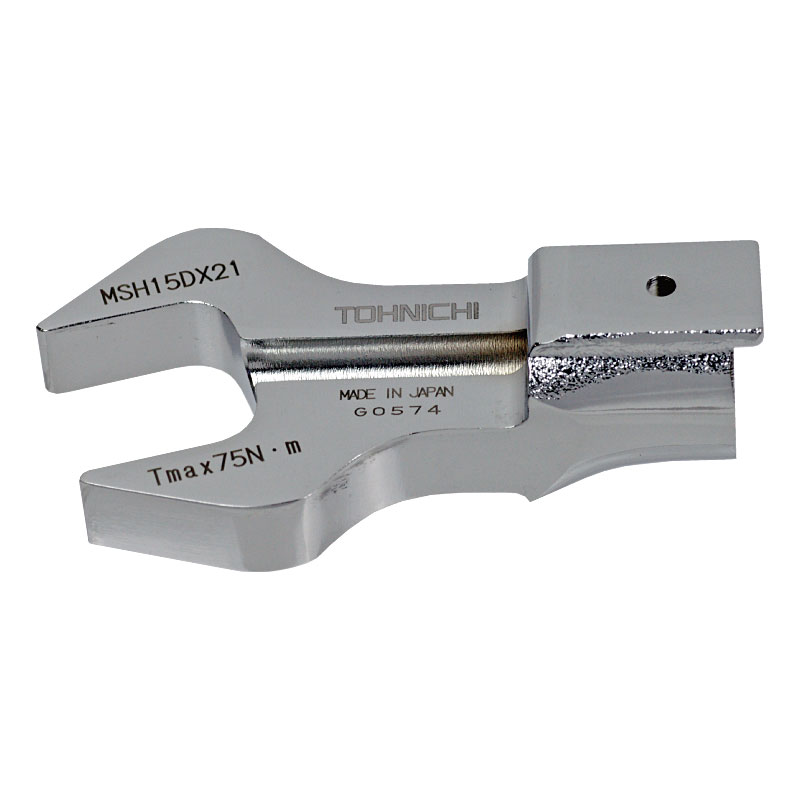

 | MSH15DX21 | Open End Head for MCSP, 15D, 21 mm Width, 75 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

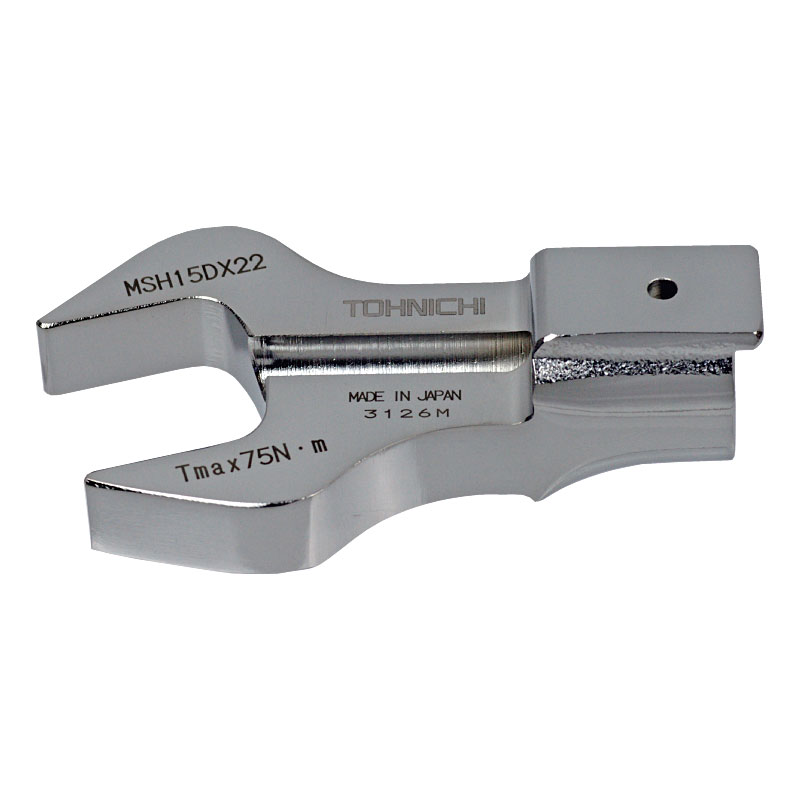

 | MSH15DX22 | Open End Head for MCSP, 15D, 22 mm Width, 75 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

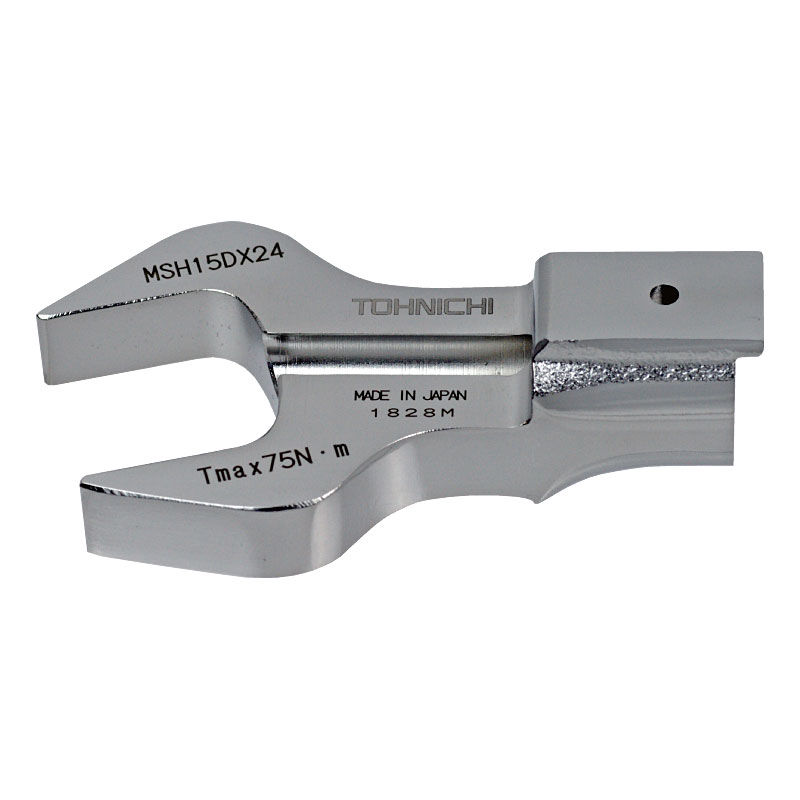

 | MSH15DX24 | Open End Head for MCSP, 15D, 24 mm Width, 75 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

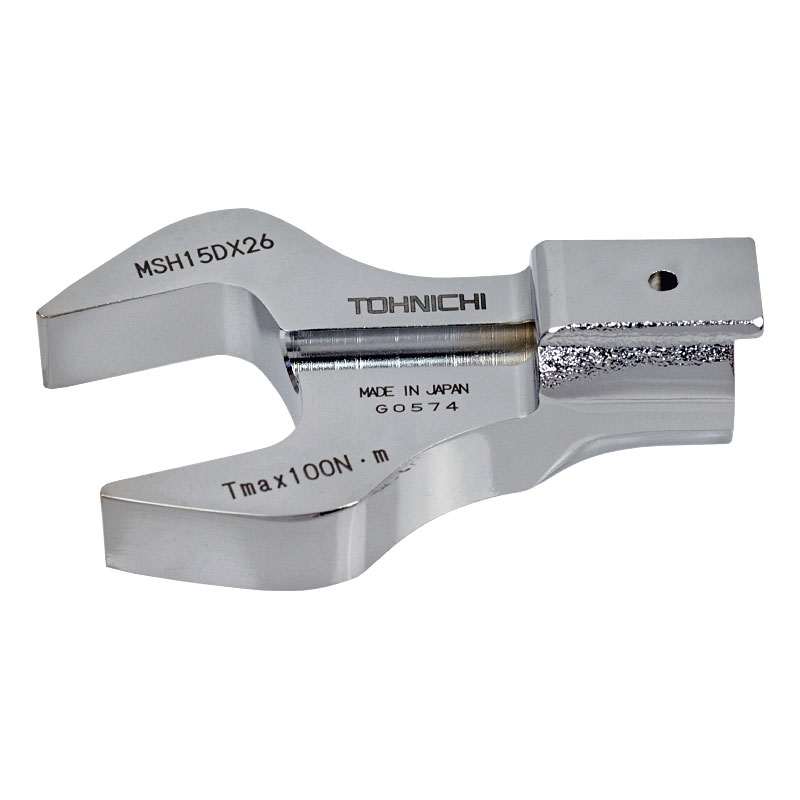

 | MSH15DX26 | Open End Head for MCSP, 15D, 26 mm Width, 100 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

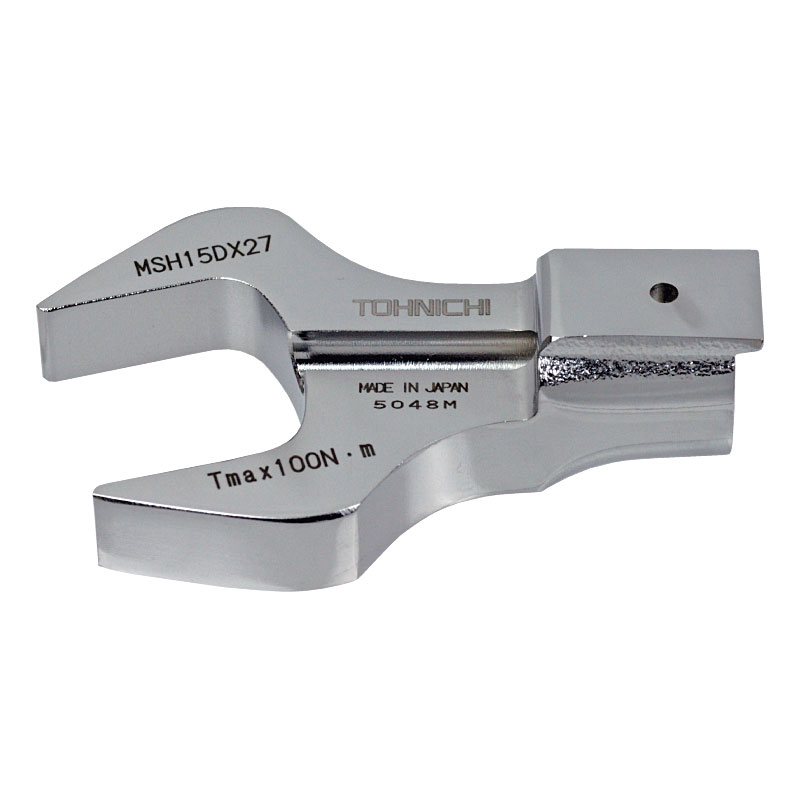

 | MSH15DX27 | Open End Head for MCSP, 15D, 27 mm Width, 100 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

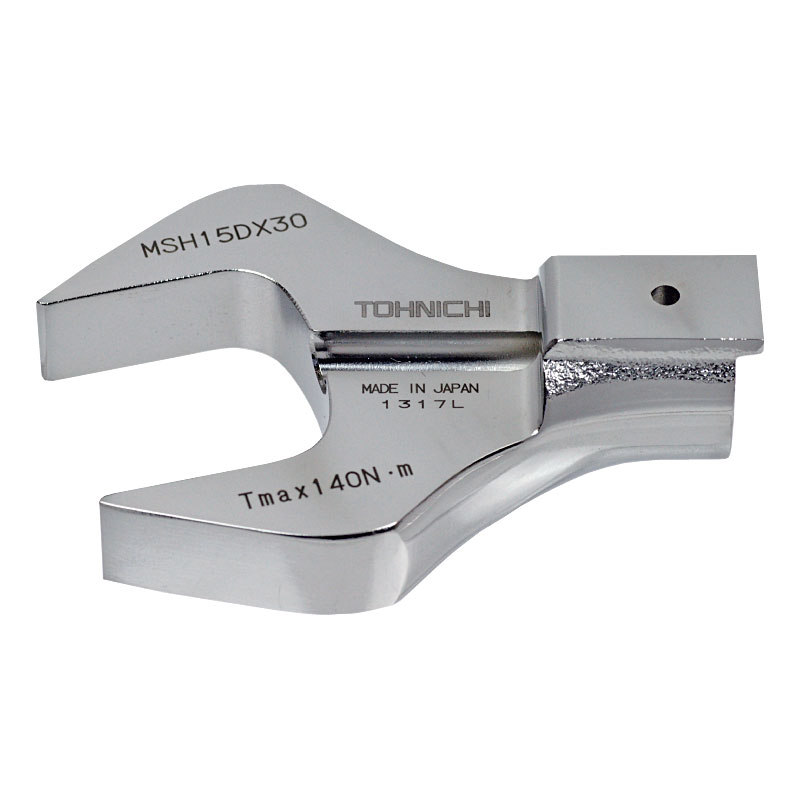

 | MSH15DX30 | Open End Head for MCSP, 15D, 30 mm Width, 140 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |

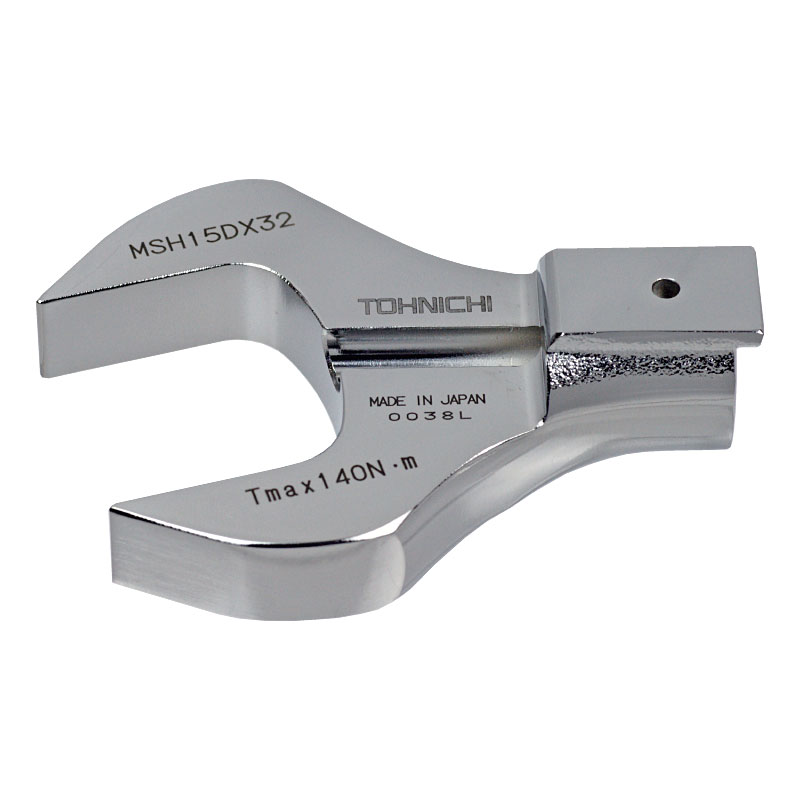

 | MSH15DX32 | Open End Head for MCSP, 15D, 32 mm Width, 140 N.m Allowable Torque Value | Out of stock item(s) | $129.00 |
