DOTE4-G (-MD2) Torque Wrench Tester

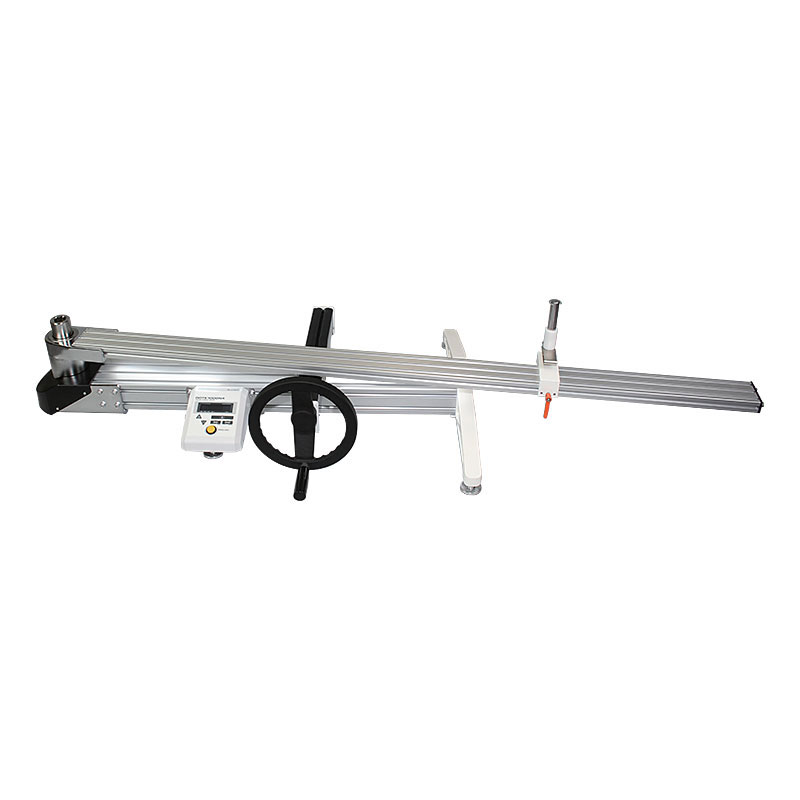

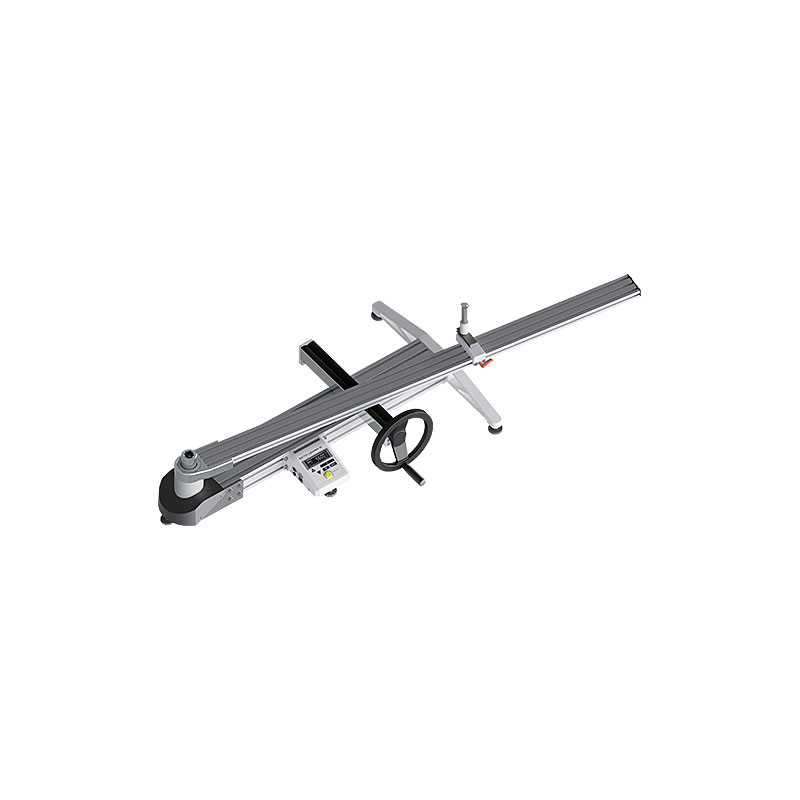

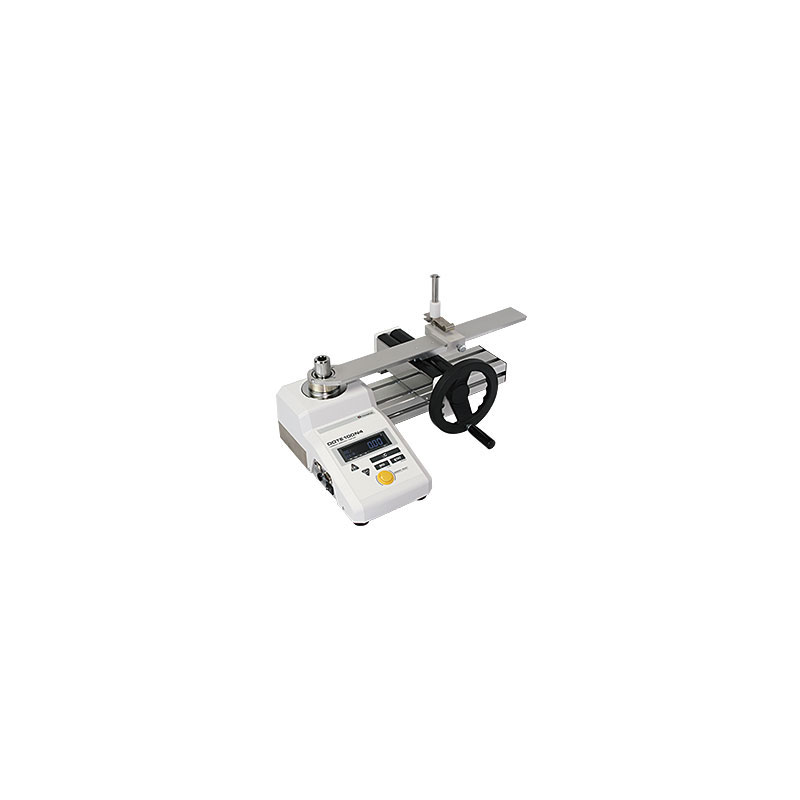

- DOTE4-G Digital torque wrench tester with manual loader. Ideal for torque wrench calibration and adjustment.

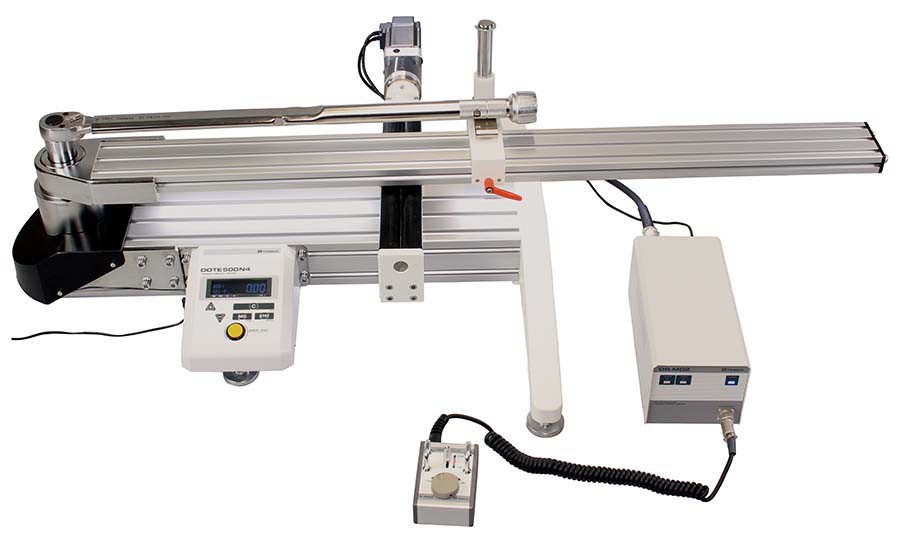

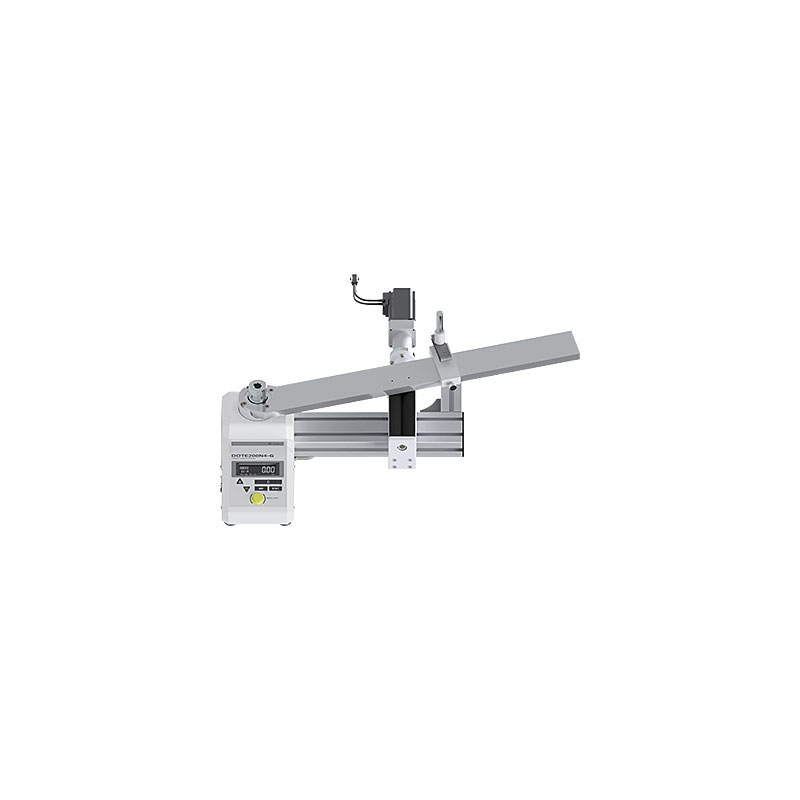

- Also available with Motor Drive Loader: Model DOTE4-G-MD.
- Motor Drive Retrofit Kit Available for DOTE4-G to upgrade standard model to motor drive version.
- Pole holder and plate are equipped on all models, which helps keep wrenches in optimal testing position.
- Auto-zero function.
- Up to 1000 measurement data items can be stored in the memory.
- Peak/Run modes with 10 customizable hi/lo judgment patterns.

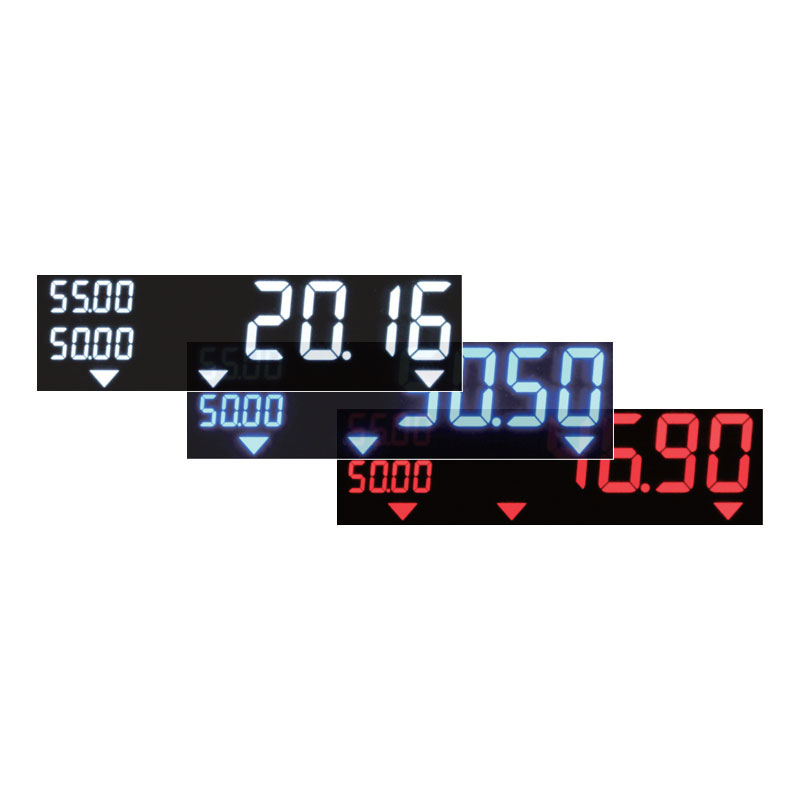

- Color Judgment Display makes it easy to confirm readings are within your set parameters.
- Global units of measure selection by keypad: cNm, NM, kgf.cm, kgf.m, lbf.in, lbf.ft.
- Sample quantity, maximum value (Hi), minimum value (Lo) and mean value can be displayed.
- Manual and Auto Reset from 0.1~5.0 seconds.

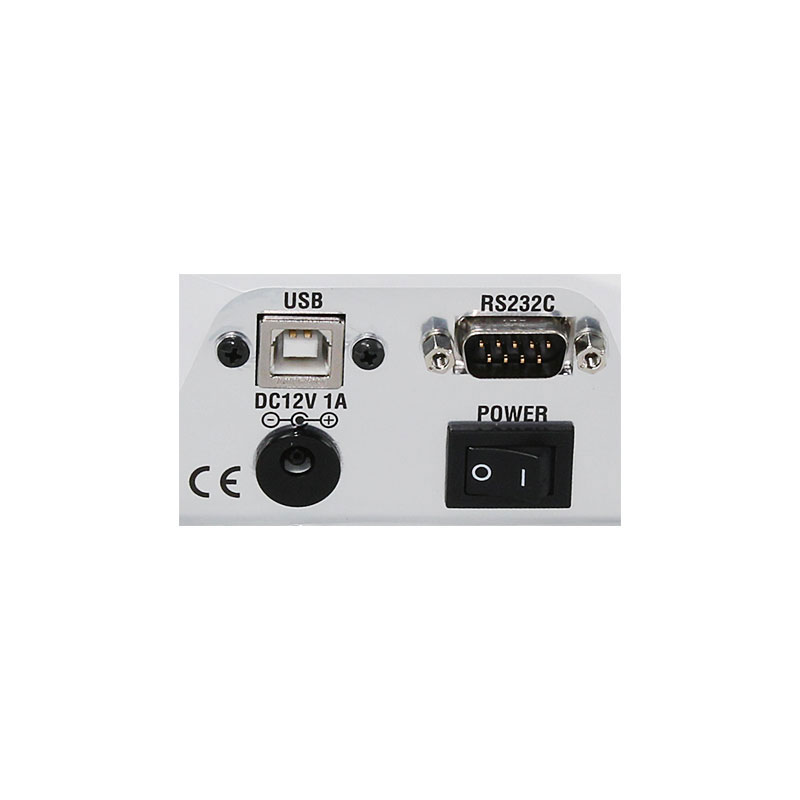

- RS232C output and USB for easy connection to PC or Printer EPP16M3 (cables sold separately).
- Uses AC100 to 240V +/10% 50/60Hz # BA-6, AC Adapter Included.
- Excel Receiver software sends collected data to an Excel®** for data management. (Provided as a free download with purchase of cable) Note: Excel® is a registered trademark of the Microsoft Corporation.
- Includes Calibration Certificate: ILAC MRA.
- Calibration Kits (sold separately) to check and adjust the accuracy of the tester on a periodic basis (or send to Tohnichi Service Center).
- CE markings applied for use in the EU.
| Thumbnail | Name | Short description | Stock status | Price |
|---|---|---|---|---|
 | DOTE10N4-G | Digital Torque Wrench Tester,0.2-10nm,20-1000cNm,2-100kgf.cm, 2-88in.lbs | Out of stock item(s) | $3,638.00 |
 | DOTE20N4-G | Digital Torque Wrench Tester, 2-20, 0.002N.m, 200-2000, 0.2cN.m, 20-200, 0.02kgf.cm, 18-180, 0.02lbf.in | Out of stock item(s) | $4,864.00 |
| DOTE20N4-G-MD2 | Digital Torque Wrench Tester with Motor Driven Loader, 2-20, 0.002N.m, 200-2000, 0.2cN.m, 20-200, 0.02kgf.cm, 18-180, 0.02lbf.in | Out of stock item(s) | $8,236.00 |
| DOTE50N4-G | Digital Torque Wrench Tester, 5-50, 0.005N.m, 50-500, 0.05kgf.cm, 44-440, 0.05lbf.in, 3.6-36, 0.005lbf.ft | Out of stock item(s) | $4,864.00 |
| DOTE50N4-G-MD2 | Digital Torque Wrench Tester with Motor Driven Loader, 5-50, 0.005N.m, 50-500, 0.05kgf.cm, 44-440, 0.05lbf.in, 3.6-36, 0.005lbf.ft | Out of stock item(s) | $8,236.00 |
 | DOTE100N4-G | Digital Torque Wrench Tester, 10-100, 0.01N.m, 100-1000, 0.1kgf.cm, 88-880, 0.1lbf.in, 7.3-73, 0.01lbf.ft | Out of stock item(s) | $4,864.00 |
| DOTE100N4-G-MD2 | Digital Torque Wrench Tester with Motor Driven Loader, 10-100, 0.01N.m, 100-1000, 0.1kgf.cm, 88-880, 0.1lbf.in, 7.3-73, 0.01lbf.ft | Out of stock item(s) | $8,236.00 |
| DOTE200N4-G | Digital Torque Wrench Tester, 20-200, 0.02N.m, 200-2000, 0.2kgf.cm, 170-1700, 0.2lbf.in, 15-150, 0.02lbf.ft | Out of stock item(s) | $5,290.00 |
| DOTE200N4-G-MD2 | Digital Torque Wrench Tester with Motor Driven Loader, 20-200, 0.02N.m, 200-2000, 0.2kgf.cm, 170-1700, 0.2lbf.in, 15-150, 0.02lbf.ft | Out of stock item(s) | $8,663.00 |
| DOTE500N4-G | Digital Torque Wrench Tester, 50-500, 0.05N.m, 5-50, 0.005kgf.m, 440-4400, 0.5lbf.in, 36-360, 0.05lbf.ft Requires Pallet Shipment | Out of stock item(s) | $7,457.00 |
 | DOTE500N4-G-MD2 | Digital Torque Wrench Tester with Motor Driven Loader, 50-500, 0.05N.m, 5-50, 0.005kgf.m, 440-4400, 0.5lbf.in, 36-360, 0.05lbf.ft | Out of stock item(s) | $10,835.00 |
| DOTE1000N4-G | Digital Torque Wrench Tester, 100-1000, 0.1N.m, 10-100, 0.01kgf.m, 880-8800, 1lbf.in, 73-730, 0.1lbf.ft | Out of stock item(s) | $12,781.00 |
| DOTE1000N4-G-MD2 | Digital Torque Wrench Tester with Motor Driven Loader, 100-1000, 0.1N.m, 10-100, 0.01kgf.m, 880-8800, 1lbf.in, 73-730, 0.1lbf.ft | Out of stock item(s) | $16,194.00 |
