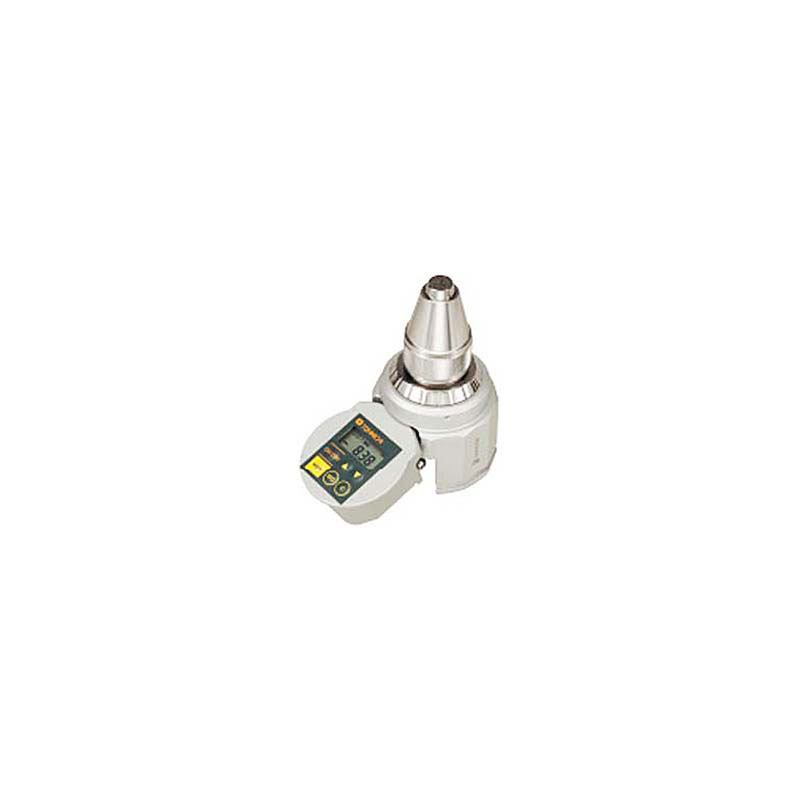

BTGE-G Torque Gauge
- Digital torque gauge series for small torque range 2～200cN • m.
- Digital torque gauge with built-in digital display.
- Mini-size handheld torque gauge.

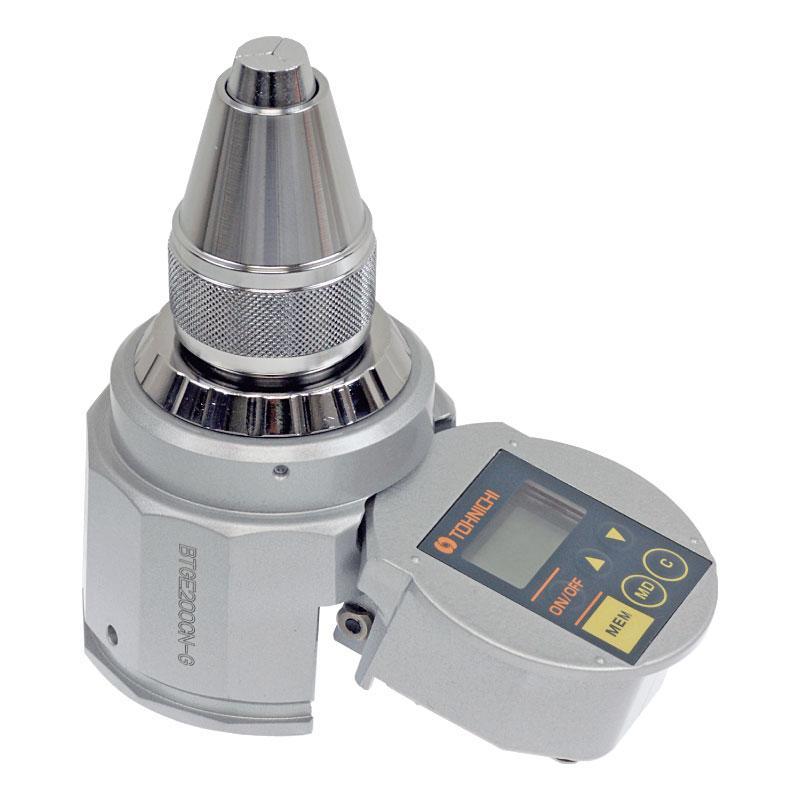

- The flip-up display can be adjusted for optimal reading and accommodates various testing positions.
- The built-in display gives user-friendliness and convenience of use.

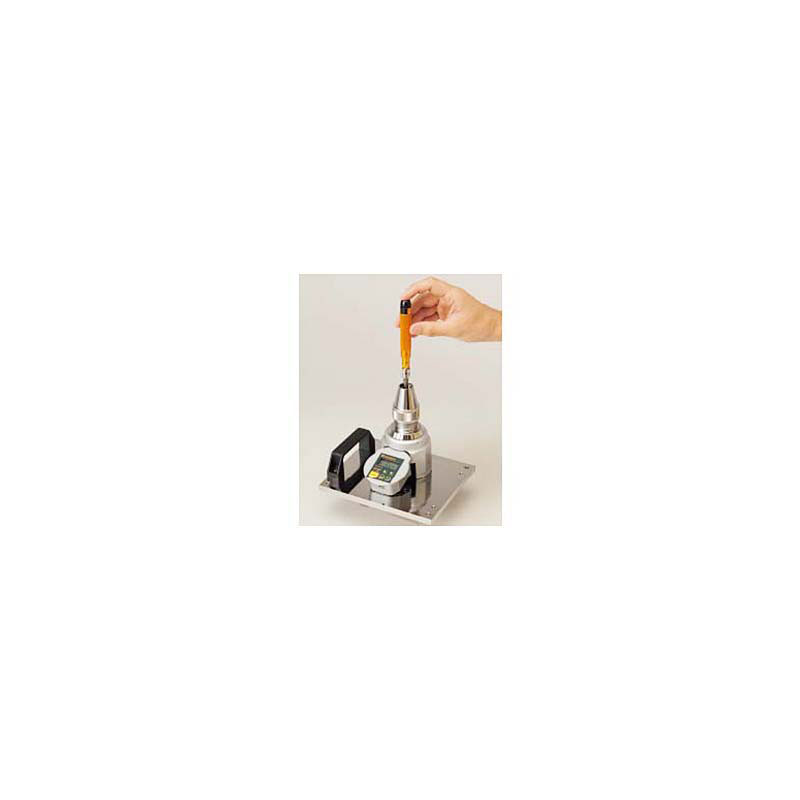

- Ideal for torque measurement for precision machinery, electronic devices, and various assembly components.
- Physical stopper prevents accidental over-loading.
- Up to 999 readings can be saved with a computing function to display max/min/meantime values.
- A coin-type lithium battery (CR2450) allows 10-hour continuous operation.
- USB cable can be used for data transfer to PC.
- Global design.
- With CE mark, it is for international use including the EU region.
- Excel Receiver software is a data input tool for Excel® data management. It can be downloaded for free.
*Note: Excel® is a registered trademark of the Microsoft Corporation.
Accessories
| Thumbnail | Name | Short description | Stock status | Price |
|---|---|---|---|---|

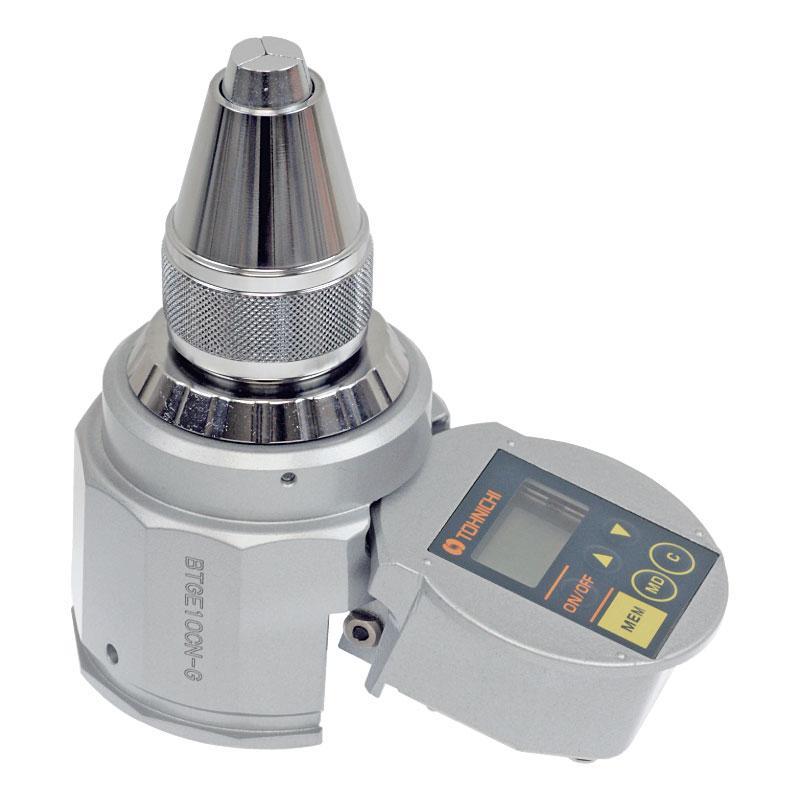

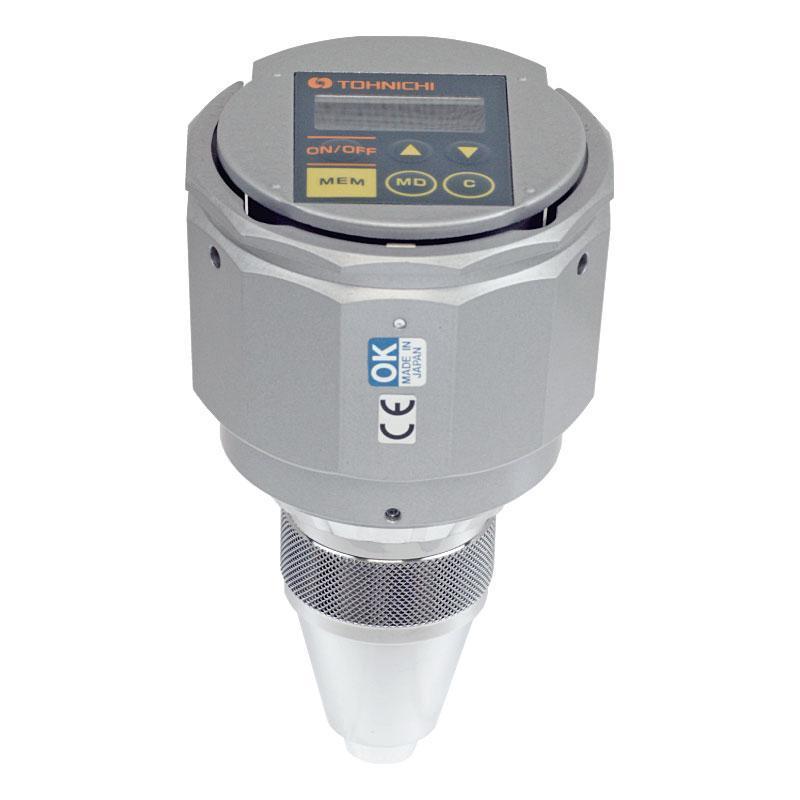

  | BTGE10CN-G | Digital Torque Gauge, 2-10, 0.01cN.m, 0.2-1, 0.001kgf.cm, 3-14, 0.01ozf.in, 0.2-0.88, 0.001lbf.in, Chuck Diameter 1-8.5 mm | On backorder item(s) | $1,735.00 |
  | BTGE20CN-G | Digital Torque Gauge, 4-20, 0.02cN.m, 0.4-2, 0.002kgf.cm, 6-28, 0.02ozf.in, 0.4-1.7, 0.002lbf.in, Chuck Diameter 1-8.5 mm | In stock1 item(s) | $1,735.00 |

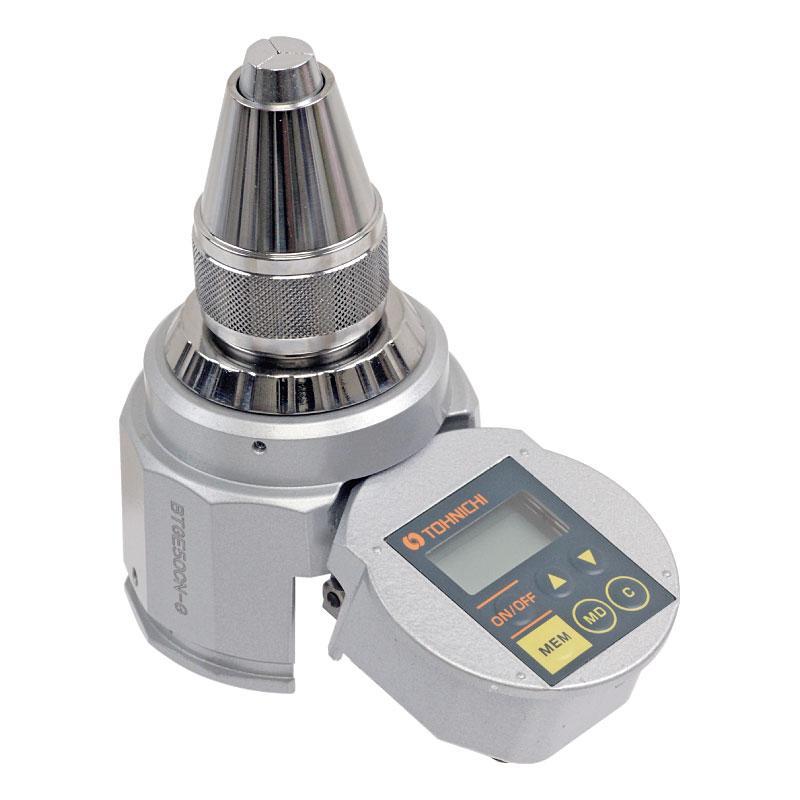

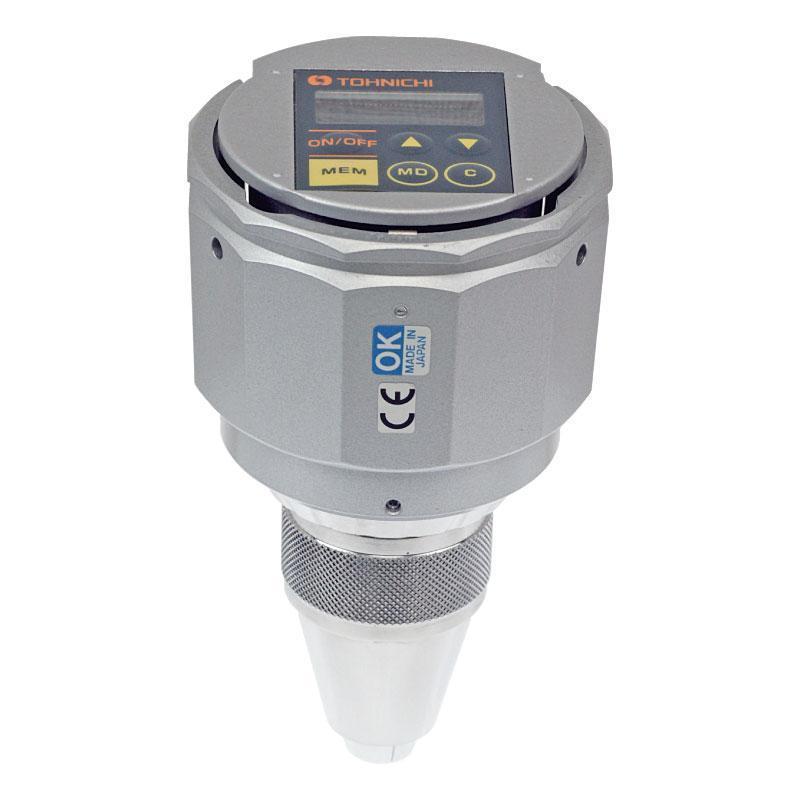

  | BTGE50CN-G | Digital Torque Gauge, 10-50, 0.05cN.m, 1-5, 0.005kgf.cm, 15-70, 0.05ozf.in, 1-4.4, 0.005lbf.in, Chuck Diameter 1-8.5 mm | On backorder item(s) | $1,735.00 |

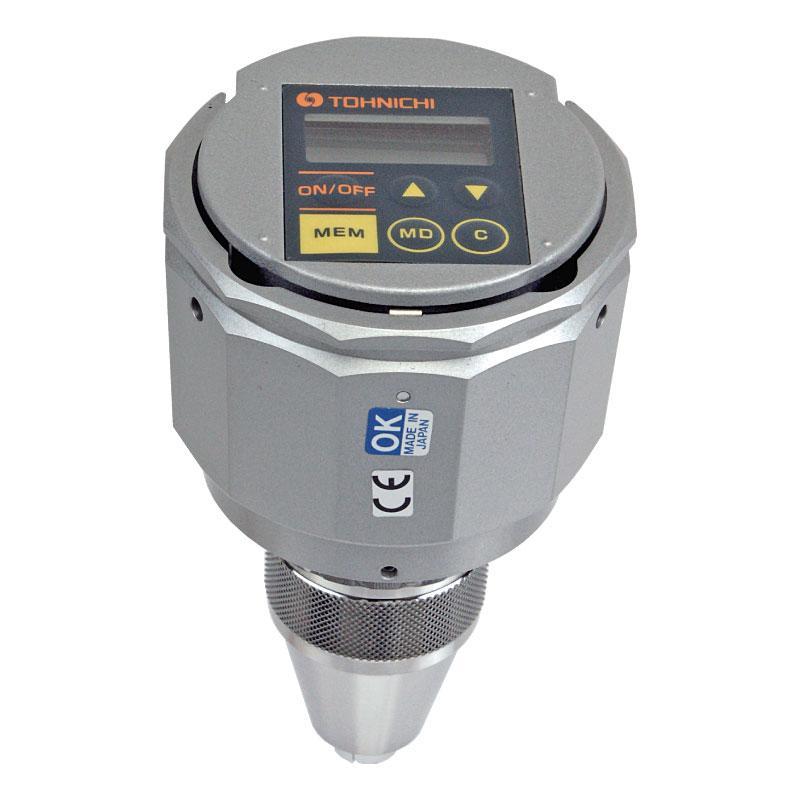

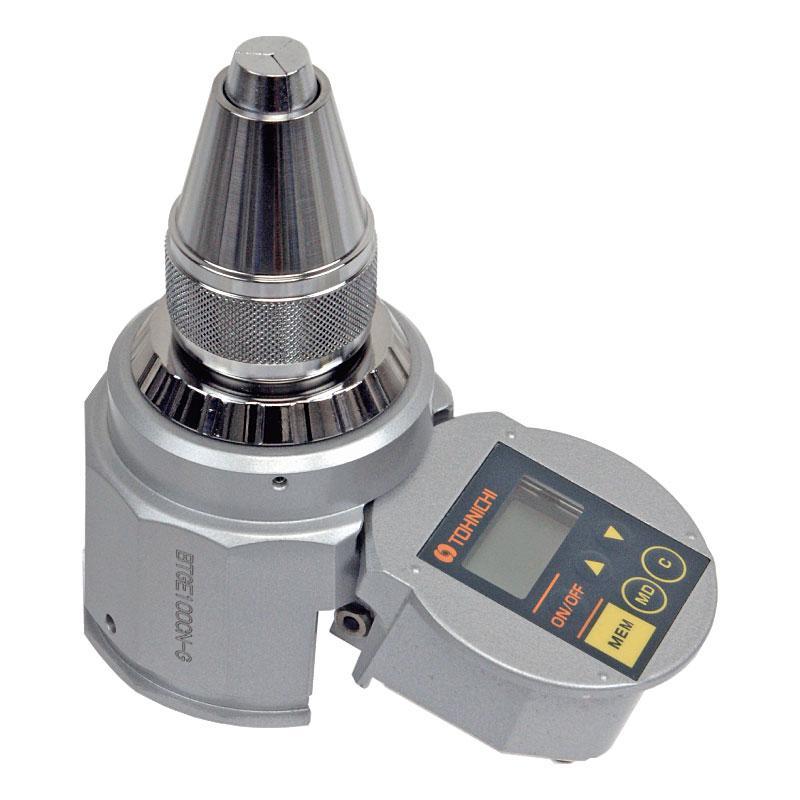

  | BTGE100CN-G | Digital Torque Gauge, 20-100, 0.1cN.m, 2-10, 0.01kgf.cm, 30-140, 0.1ozf.in, 2-8.8, 0.01lbf.in, Chuck Diameter 1-8.5 mm | In stock1 item(s) | $1,735.00 |

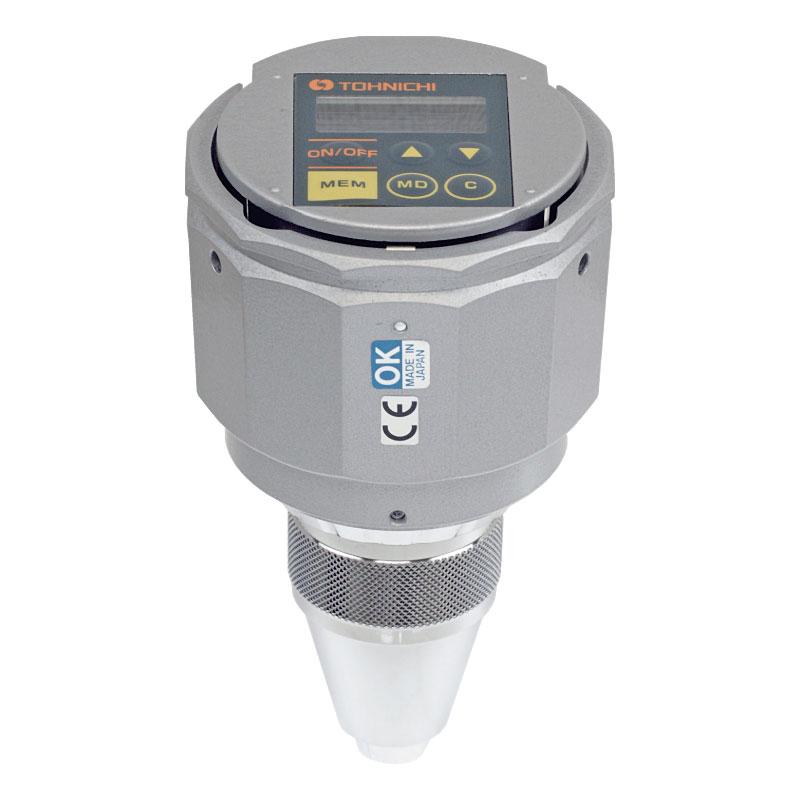

  | BTGE200CN-G | Digital Torque Gauge, 40-200, 0.2cN.m, 4-20, 0.02kgf.cm, 60-280, 0.2ozf.in, 4-17, 0.02lbf.in, Chuck Diameter 1-8.5 mm | In stock1 item(s) | $1,735.00 |
