TDT2-G

Direction

Digital Torque Screwdriver Tester
  • Digital Torque Screwdriver and Small Wrench Tester
  • Ideal for Testing Click and Dial Indicating Torque Screwdrivers: Includes 2 Types of Interchangeable Loading Mechanisms
  • Optional TDTLA Loading Bar for Testing Small Capacity Torque Wrenches.
  • New version TDT2-G features multiple units of measure through keypad setup.


pdf Operating Instructions
pdf Operating Instructions - TDT2-G

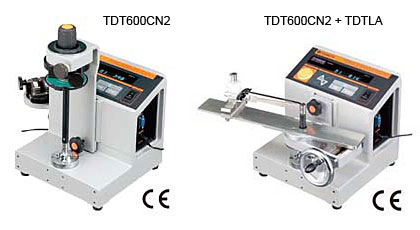

TDT2-G with Loader for Click Type Screwdrivers in Testing Area (above)


Easily change to Dial Type Screwdriver Loader or Optional Small Wrench Loader
TDT2 Digital Torque Screwdriver Tester




Model TDT2-G:  Multiple Unit of Measure Models
Accuracy ±1%
Model Torque Range Square Drive Weight Approx. Standard Accessories
cN•m kgf•cm ozf•in lbf•in
Min.- Max. 1 digit Min.- Max. 1 digit Min.- Max. 1 digit Min.- Max. 1 digit mm in kg lbs

TDT60CN2-G

 2-60 0.01 0.2-6 0.001 3-80 0.01 0.2-5 0.001 6.35 Hex (Male)
with a groove (0.7mm)		 Hex 1/4
Minus 1/32 Groove		 13.5 29 51/64

•AC Adapter (BA-3)
•Loading Device for Dial Type Screwdrivers
•Loading Device for Click Type Screwdrivers
TDT600CN2-G 20-600 0.1 2-60 0.01 30-800 0.1 2-50 0.01

  • “-G” models feature 4 changeable units of measure through keypad set up
  • ISO factory certificate of calibration is included and data is supplied in SI units only.
  • NIST Traceable certificates are available upon request for an additional fee. For NIST certifications any one of the units of measure may be selected to be shown on the certificate.


S.I. Models (Available upon Request)

Model Torque Range Square Drive Weight Approx.
Min.-Max. 1 digit
cN•m cN•m mm in kg lbs
TDT60CN2 2-60 0.01 6.35 Hex (Male)
with a groove (0.7mm)		 Hex 1/4
Minus 1/32 Groove		 13.5 29 51/64
TDT600CN2 20-600 0.1

note
1. SI (Newton) models have units in SI only
2. Quick reference side blue button will change display to show converted units in Metric.
3. ISO factory certificate of calibration is shown in SI units
4. NIST traceable certificate of calibration available upon request for an additional fee.


Common Specification
DATA MEMORY 99 data
STATISTICAL PROCESSING Number of samples, maximum value, minimum value, and mean value
MEASUREMENT MODE PEAK / RUN
ZERO ADJUSTMENT  Auto
DATA OUTPUT RS232C-compliant
RESET Manual /Auto [settable in the range from 0.1 to 5.0 sec.]
OPERATING TEMPERATURE RANGE 0 ~ 40°C Non condensing
POWER AC 100 ~ 240V 50/60Hz
Loading Device for LTD/RTD Applicable Grip Diameter 7 to 40mm
Applicable Grip Diameter 60 to 150mm
Holding Function None
Loading Device for FTD Applicable Grip Diameter 7 to 36mm
Applicable Grip Diameter 140 to 230mm 200 to 290mm
Holding Function Worm gear fitted

Applicable Models

( ) is applicable for a part of the capacity range

 LTD/RTD 15, 30, 60CN (60), 120, 260, 500CN
NTD/RNTD 15, 30, 60CN (60), 120, 260, 500CN
AMLD (4), 8CN
BMLD 15, 30CN
FTD 50CN (50), 100, 200, 400CN
FTD2-S (5), 10, 20, 50CN (50), 100, 200, 400CN


Optional Accessories:

LOADING EQUIPMENT FOR TDT
Model
TDTLA
For testing low capacity torque wrenches. (see attached to tester in photo above)


External Battery Pack
Model Type Usage Time Weight Size Applicable Series Models
BP-100-3 Rechargeable Lithium-ion 7 hrs 225g W109mmXD73.6mmXH23mm DOTE3(-G), LC2(-G), TDT2(-G), TME2
For using tester where electrical outlet is not available

Cables
Excel Receiver Software complimentary with purchase of Cable.

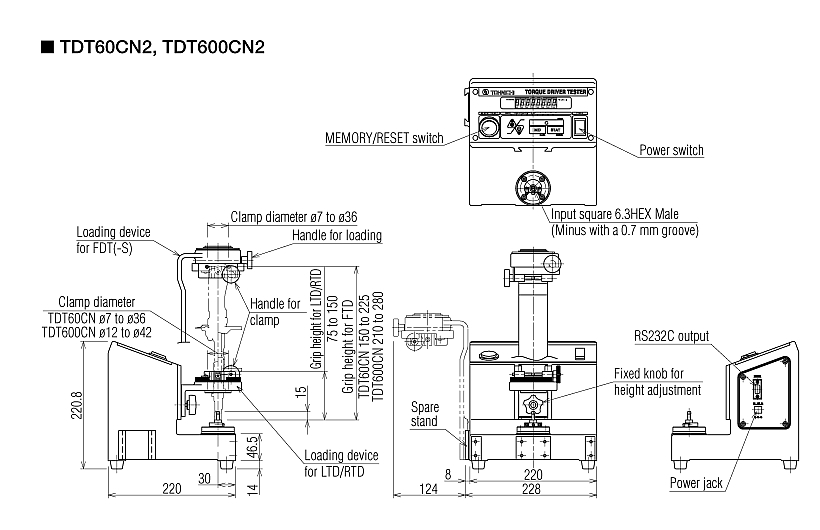

Dimensions
