ST2 SpinTork

Rotary Peak Torque Meter (Discontinued Model) See New ST3-G/ST3-G-BT
Direction
  • Digital Rotary Peak Torque Meter
  • Compact Handheld Cordless Sensor
  • Ideal for Checking Nutrunner Torque Output
  • Place Unit Directly Between Tool and Fastener
  • Ideal for Testing Torque Output of Torque Wrenches or Pneumatic Tools on the Fastener
  • Expanded 999 Data Memory
  • New USB Port
  • Additional CCW Function
  • Improved Resolution; Accuracy +/1% + 1 Digit
  • 10 Hours Battery Life on 2 Hour Charge

pdf Operating Instructions





Select proper model according to unit of measure as following color code :
S.I. =     Metric =     American =
Accuracy +/-1%+1digit
Model Torque Range Square Drive Dimensions [mm] Weight Accessories
S.I. Metric American MIN - MAX Graduation mm in L' E C d1 d2 A E' kg Standard Optional
S.I. Metric American S.I. Metric American

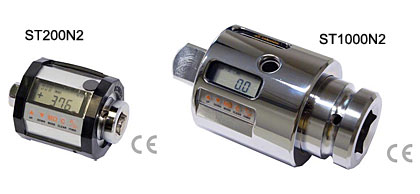

ST10N2 ST100M2 ST90I2 N.m
2-10		 kgf.cm
20-100		 lbf.in
20-90		 N.m
0.01		 kgf.cm
0.1		 lbf.in
0.1		 6.35 1/4 75 46 49 2.1 2.1 53 50 0.25 BC-4 AC Adapter, USB Driver Disc, USB Cable, Carrying Case

Extension Sockets(See chart below)


ST20N2 ST200M2 ST180I2 4-20 40-200 40-180 0.02 0.2 0.2 9.5 3/8 3.1 5
ST50N2 ST500M2 ST450I2 10-50 100-500 100-450 0.05 0.5 0.5 12.7 1/2 4.1
ST100N2 ST1000M2 ST900I2 20-100 200-1000 200-900 0.1 1 1 12.7 1/2
ST200N2 ST2000M2 ST150F2 40-200 400-2000 lbf.ft
30-150		 0.2 2 lbf.ft
0.2		 12.7 1/2
ST500N2 ST5000M2 ST360F2 100-500 1000-5000 72-360 0.5 5 0.5 19 3/4 120 64 69 6 6 69   1.3
ST1000N2 ST10000M2 ST700F2 200-1000 kgf.m
20-100		 140-700 1 kgf.m
0.1		 1 25.4 1 135 6.5 6.5

Note

  1. Caution: Not for use with impulse or impact wrenches
  2. Protective cover is included with models: ST500N2 and ST1000N2 and Metric/American equivalent models
  3. Consider ST2-BT Bluetooth Version for wireless data transmission without removing tool from the applciation (See link above)
Common Specification
ACCURACY ±1%+1digit
DIRECTION CW , CCW
DISPLAY 7 Segments LCD
3 Segment 3mm , 4 Segment 7mm
Unit,  Remaining Battery Level, Direction
MEASUREMENT MODE PEAK/RUN
NUMBER OF DATA MEMORY 999
ARITHMETIC FUNCTION Sampling , Maximum , Minimum and Means
DATA OUTPUT I/F Infrared Ray , USB Connector
POWER SUPPLY Ni-MH Battery
CONTINUOUS OPERATION 10 hrs
CHARGER Input　AC100V-240V±10%（PSE、CE
RECHARGING TIME 2 hrs
ANOTHER FUNCTION AUTO OFF 3min , Auto Memory & Reset , Auto Zero Setting ,
Remaining Battery Level
OPERATION CONDITION Temperature 0-40　degree
STANDARD ACCESSORIES Battery Pac BP-6 , Battery Charger BC-4 , C Type Adapter, Connecting Cable ST2 (USB MiniB Type) to PC (USB A Type) , CD Driver, Carrying Case



Optional Accessories
Extension Socket for ST2
Catalog Number Applicable Model
283
 ST10N2, ST100M2, ST90I2
281
 ST20N2, ST200M2, ST180I2
247
 ST50N2, ST500M2, ST450I2
ST100N2, ST1000M2, ST900I2
St200N2, ST2000M2, ST150F2
248
 ST500N2, ST5000M2, ST360F2
249
 ST1000N2, ST10000M2, ST700F2

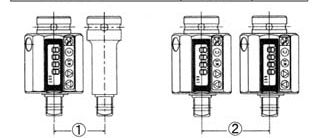

Minimum Axial Pitch
Model
Drawing 1
Drawing 2
ST10N2~ST200N2
40mm
50mm
ST500N2
55mm
70mm
ST1000N2
60mm

Same for equivalent Metric and American Models

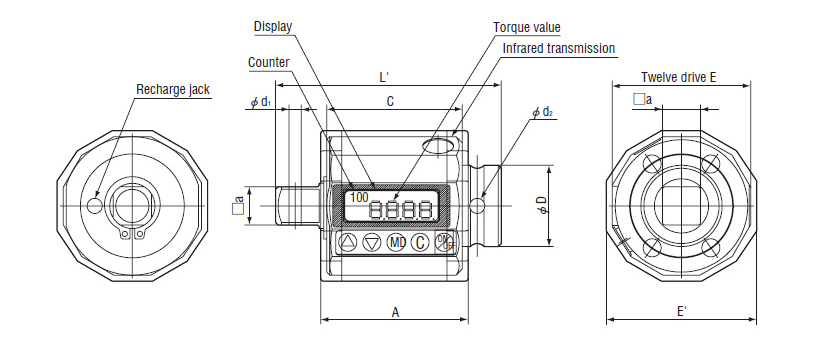

Dimensions
