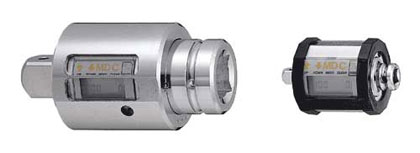

ST Spin Tork
New Version ST2 is now available.
Revolutionary compact,
high accuracy and easy to operate, Suitable for nutrunner torque check.
| S.I. = | Metric = | American = |
Accuracy
F.S. ±1% + 1digit
| Model | Torque Range | Square Drive | Dimension | Weight Approx. | ||||||||||||
| S.I. | Metric | American | Min.-Max. | Graduation | Overall Length | Max. Diameter | ||||||||||
| S.I. | Metric | American | S.I. | Metric | American | mm | in | mm | in | mm | in | kg | lbs. | |||
| ST12N | ST120 | ST100I-3A | N.m 1.2-12 |
kgf.cm 12-120 |
in.lbs 10-100 |
N.m 0.05 |
kgf.cm 0.5 |
in.lbs 0.5 |
9.5 | 3/8 | 75 | 2 61/64 | 48 | 1 29/32 | 0.25 | 9/16 |
| ST24N | ST240 | ST200I-3A | 2.4-24 | 24-240 | 20-200 | 0.1 | 1 | 1 | ||||||||
| ST48N | ST480 | ST400I-4A | 4.8-48 | 48-480 | 40-400 | 0.2 | 2 | 2 | 12.7 | 1/2 | ||||||
| ST120N | ST1200 | ST1000I-4A | 12-120 | 120-1200 | 100-1000 | 0.5 | 5 | 5 | ||||||||
| ST240N | ST2400 | ST85F-4A | 24-240 | kgf.m 2.4-24 |
ft.lbs 8.5-85 |
1 | kgf.m 0.1 |
ft.lbs 0.5 |
||||||||
| ST480N | ST4800 | ST340F-6A | 48-480 | 4.8-48 | 34-340 | 2 | 0.2 | 2 | 19.0 | 3/4 | 135 | 5 5/16 | 66.5 | 2 5/8 | 1.3 | 2 7/8 |
| ST1200N | ST12000 | ST850F-8A | 120-1200 | 12-120 | 85-850 | 3 | 0.3 | 5 | 25.4 | 1 | ||||||
| DATA MEMORY | 100 data |
| ARITHMETIC FUNCTION | Maximum, Minimum, Means |
| MEASUREMENT MODE | PEAK/RUN |
| ZERO ADJUSTMENT | C key, Auto zero |
| DATA OUTPUT | Infrared output |
| RESET | Auto reset (Changeable by each 0.5 sec.) |
| POWER | Ni-Cd Battery |
| CONTINUOUS OPERATION [h] | 2 |
| BATTERY CHARGE [h] | 3 |
| OPERATING CONDITION [°C] | Temperature 0 ~ 40 |
2. For data transfer, use DATA TANK (R-DT100-3).
3. Protector cover is attached to ST480N and ST1200N.
4. AC adapter is included for recharging the unit.
