FM96MC

Ask us about New Version FH256 Now Available

(FM96MC will continue to be supported for current customers)

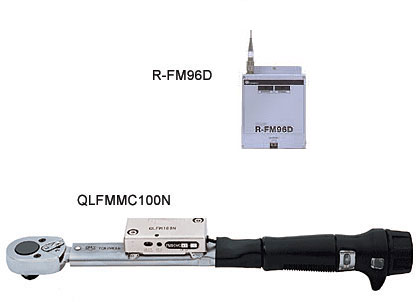

Wireless wrench system alerts operator to missed tightening.

FM96D/QLFMMC
pdf Operating Instructions
Select proper model according to unit of measure as following color code :
S.I. =     Metric =

for QLFMMC type
Accuracy ±3%
Model Torque Range Effective Length Overall Length
MIN. ~ MAX. Graduation
S.I. METRIC S.I. METRIC S.I. METRIC mm mm
QLFMMC25N 225QL3FM96D N.m
5-25		 kgf.cm
50-250		 N.m
0.25		 kgf.cm
2.5		 155 220
QLFMMC50N 450QL3FM96D 10-50 100-500 0.5 5 180 260
QLFMMC100N 900QL3FM96D 20-100 200-1000 1 10 260 340
QLFMMC140N 1400QL3FM96D 30-140 300-1400 318 400
QLFMMC200N 1800QL3FM96D 40-200 400-2000 2 20 400 495
QLFMMC280N 2800QL3FM96D 40-280 400-2800 610 695
American models are available upon request.
Note
1. Table is an example in QL type torque wrench.
2. Other click type torque wrenches are available.

Common Specification
  Transmitter Receiver
F-FM96MC R-FM96D
FREQUENCY BAND 41MHz Band (41.025 ~ 41.300MHz, 25kHz Space, 12 types)
WAVE TYPE FM (F2E)
CHANNEL CHANGE
(BY DIP SWITCH)		 Radio frequency (fixed) 1ch
Tone frequency 16 channels Selection		 Radio frequency A series: 6 channels selection / B Series: 6 channel selection
Tone frequency A, B series: 6 channels selection
CHANNEL/UNIT 16ch 96ch
TOTAL CHANNELS 192ch
IDENTIFICATION SIGNAL Dual tone system
SIGNAL OUTPUT - NO-voltage contact output (1a) 30VDC 1A 220VAC 0.3A
POWER DC 1.5VPC R3 alkaline battery AC100 ~ 115V ±10% 50/60Hz
ANTENNA Wire (Approx. 20cm) 1/4 fÉ Whip
OPERATING TEMPERATURE RANGE 0 ~ 45°C
LED LAMP Power, Transmitting Power, Receiving lamp
TRANSMISSION DISTANCE Approx. 10 ~ 20m
CHECK FUNCTION Battery check terminal, Transmitting-receiving check switch -
DIMENSIONS 18.2H x 36W x 68D 50H x 150W x 210D
WEIGHT 70g 1.5kg
Note
1. There are total 12 radio fixed channels, A1 to A6 and B1 to B6, and each radio channel has changeable 16 tone channels. For example A1-1 and B6-16.
2. R-FM96DA and R-FM96DB receivers can respond to 96 channels equivalent to each.
3. AC220V power sauced receiver is available.
