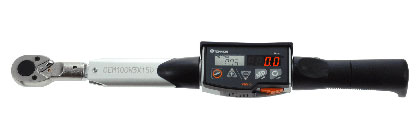

CEM3 Data Tork
Digital Torque Wrench
Used primarily as a quality inspection tool.Tests tightened fasteners by performing loosening or retightening tests. Confirm product quality and test tightening consistency of automated machinery.
- Industrial grade digital torque wrench
- Accuracy of +/-1% of indicated value
- Bi-directional loading
- 999 Data Memory Capacity with torque value, time/date stamp, and count
- Dual LED and LCD Displays; Large Red LCD digits indicate torque value for easy viewing
- Rechargeable Battery with Battery Level Indicator and Sleep Mode
- Available in SI, Metric or English by selecting specific model when ordering
- Set up HI Lo for Judgments linked to Red/Blue Lights (colorblind friendly) and Alarms
- Tightening Mode for easy application of specific torque with over torque judgment
- Light weight yet durable display casing with rubber protector
- Automatic or Manual memory storage
- RS232 output (#584 USB cable sold separately) {Blue tooth version available see CEM3-BT)
- Includes Rechargeable Battery (BP-5), Battery Charger (BC-3-100), QH Ratchet Head, and Certificate of Calibration
- Accepts Tohnichi interchangeable heads (additional heads sold separately)
Select proper model according
to unit of measure as following color code :
| S.I. = | Metric = | American = |
Accuracy
±1%+1digit

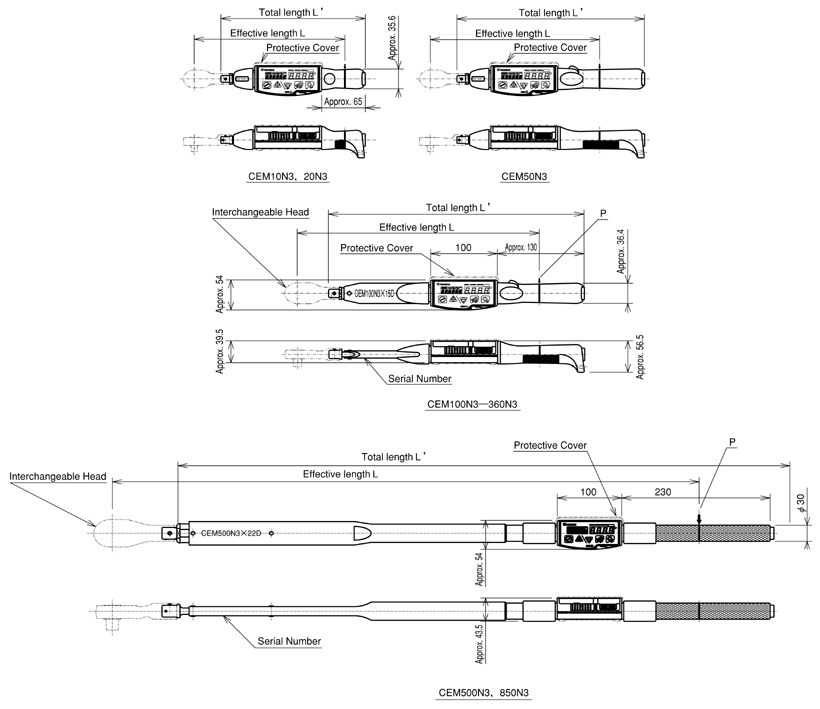

| Model | Torque Range | Grad. | Model | Torque Range | Grad. | Model | Torque Range | Grad. | Hand force at Max.Torque | Effective Lgth. L | Overall Lgth. L' |
Weight approx | Standard Accessories | Interchangeable Heads | |
| Min.-Max. | Min-Max. | Min-Max. | |||||||||||||
| S.I. | Metric | American | N | mm | mm | kg | |||||||||
| CEM10N3X8D | N.m 2-10 |
N.m 0.01 |
CEM10N3X8D-M | kgf.cm 20-100 |
kgf.cm 0.1 |
CEM10N3X8D-I | in.lbs 20-90 |
in.lbs 0.1 |
48.1 | 208 | 212 | 0.46 | QH8D | Battery Charger BC-3-100 100V or BC-3-200 220V |
(SH,RH,QH,HH) 8D |
| CEM20N3X10D | 4-20 | 0.02 | CEM20N3X10D-M | 40-200 | 0.2 | CEM20N3X10D-I | 36-180 | 0.2 | 92.2 | 217 | 214 | 0.47 | QH10D | (SH,RH,QH,HH, DH) 10D | |
| CEM50N3X12D | 10-50 | 0.05 | CEM50N3X12D-M | 100-500 | 0.5 | CEM50N3X12D-I | 100-450 | 0.5 | 196.9 | 254 | 282 | 0.58 | QH12D | (SH,RH,QH,RQH, HH,DH) 12D | |
| CEM100N3X15D | 20-100 | 0.1 | CEM100N3X15D-M | 200-1000 | 1 | CEM100N3X15D-I | 200-900 | 1 | 275.5 | 363 | 384 | 0.63 | QH15D | (SH,RH,QH,RQH, HH,DH,FH) 15D | |
| CEM200N3X19D | 40-200 | 0.2 | CEM200N3X19D-M | 400-2000 | 2 | CEM200N3X19D-F | ft.lbs 30-150 |
ft.lbs 0.2 |
428.3 | 467 | 475 | 0.78 | QH19D | (SH,RH,QH,RQH, HH,DH,FH) 19D | |
| CEM360N3X22D | 72-360 | 0.4 | CEM360N3X22D-M | 720-3600 | 4 | CEM360N3X22D-F | 52-260 | 0.4 | 498.6 | 722 | 713 | 1.13 | QH22D | (SH,RH,QH,RQH, HH,DH,FH) 22D | |
| CEM500N3X22D | 100-500 | 1 | CEM500N3X22D-M | kgf.m 10-50 |
kgf.m 0.05 |
CEM500N3X22D-F | 72-360 | 0.5 | 549.5 | 910 | 949 | 4.0 | |||
| CEM850N3X32D | 170-850 | 1 | CEM850N3X32D-M | 17-85 | 0.1 | CEM850N3X32D-F | 124-620 | 1 | 608 | 1398 | 1387 | 5.14 | QH32D | (SH,RH,QH) 32D | |
1. When ordering Metric or American models, confirm correct suffix letter to indicate unit of measure(-M, -I, -F).
| DISPLAY (Torque Value) | 7 Segments LED 4 lines* |
| (Counter) | 14 segments LCD 3 lines* |
| DIGITAL HEIGHT (Torque Value) | 10.16mm* |
| (Counter) | 7mm* |
| NUMBER OF DATA MEMORY | 999 Data |
| BASIC FUNCTIONS | Peak Hold |
| Peak Data Memory | |
| Run Mode | |
| Auto Memory & Resetting | |
| Auto Zero Setting | |
| Auto Off (3 min) | |
| Over Torque Alarm | |
| Clock | |
| COMMUNICATION FUNCTIONS | RS232C (2400-19200 bps) |
| Serial output corresponding to a USB connector | |
| BATTERY LIFE INDICATOR | Available |
| POWER SUPPLY | Ni-MH rechargeable battery |
| CONTINUOUS USE | Approx. 30hrs (Power Saving Mode) |
| RECHARGING TIME | Approx. 3.5 hrs |
| COMMUNICATION MODE SWITCH | Key Operation |
