LC

Torque Wrench Line Checker
Direction
  • Suitable for Use near the Assembly Line
  • For Daily Inspections of Torque Wrenches Prior to Use
  • Quick Spot Checks of Torque Wrenches Confirm Tool is Set and Functioning Correctly.
  • Digital Display with Time and Date Functions

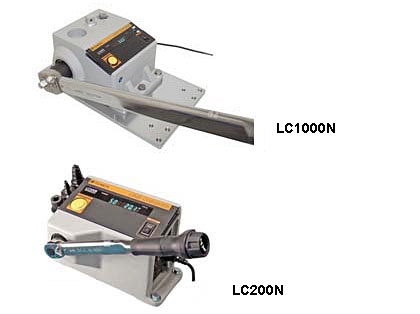

LC Digital Torque Wrench Checker

pdf Operating Instructions
Select proper model according to unit of measure as following color code :
S.I. =     Metric =     American =
Accuracy ±1%+1 Digit
Model Torque Range Square Drive Dimension Weight Approx.
S.I. Metric American Min.-Max. Graduation (Overall Length X Width X Height)
S.I. Metric American S.I. Metric American mm in mm in kg lbs
LC20N LC200 LC200-A N.m
0.5-20		 kgf.cm
5-200		 in.lbs
5-174		 N.m
0.005		 kgf.cm
0.05		 in.lbs
0.05		 9.5 3/8" 278 X 160 X 167 10 15/16 X 6 15/16 X 6 21/32 10.5 23 1/8
LC200N LC2000 LC2000-A 5-200 50-2000 50-1740 0.05 0.5 0.5 12.7 1/2"
LC1000N LC10000 LC10000-A 50-1000 kgf.m
6-100
ft.lbs
40-735		 0.2 kgf.m
0.02
ft.lbs
0.2		 25.4 1" 500 X 290 X 168 19 5/8 X 11 3/8 X 6 5/8 34 75

Common Specification
DATA MEMORY 50 data (Counter, time, minutes, torque data)
MEASUREMENT MODE PEAK / RUN
ZERO ADJUSTMENT  C key, Auto zero by OFF/ON key
DATA OUTPUT RS232C (Printer: standard, personal computer: change by inside dip switch)
RESET Manual /Auto (0.5 ~ 5.0 sec freely changeable by 0.1 sec.)
OPERATING CONDITION [°C] Temperature 0 ~ 40
POWER SOURCE AC[V] 100 ~ 240 50/60Hz Auto shift.
Note
1. Calibration kit model TCL is available as option.
2. 2m X 2P flat type plug is supplied as standard.

Accessories
HEX ADAPTER KIT
Applicable Model Square Drive (mm) Hex Width (mm) Part No.
LC20N 6.35 8, 10, 12, 13, 14, 17 282
LC200N 9.53  8, 10, 12, 13, 14, 17, 19, 22 280

SOCKET ADAPTER
Applicable Model Square Drive - Female (mm) Square Drive - Male (mm) Part No.
LC20N 6.35 9.5 270
LC200N 9.5 12.7 272
LC1000N 12.7 19.0 274
19.0 25.4 276
