HAT

Battery Operated Torque Screwdriver

HATDirection   HATRDirection

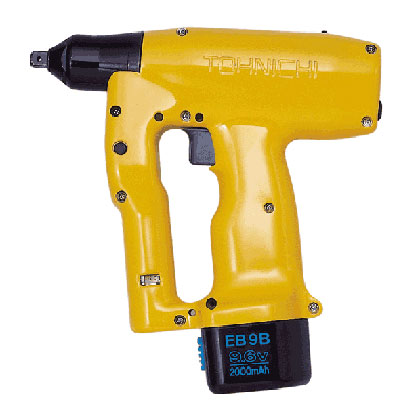

Battery Powered Fully Automatic Pistol Type Torque Tool

Easy Calibration Check with Standard Torque Wrench Tester

HATR Features Reverse Function for Loosening

HAT Battery Operated Torque Tool
pdf Operating Instructions
Accuracy ±5%
S.I. Model FM Torque Range Rotation Rated Voltage Number of Tightening Bolts Square Drive Noise Level Weight
Min.-Max. Graduation [r.p.m.] DC[V] [mm] [dB(A)] [kg]
HAT5N Without N.m
2-5
N.m
0.1
1350 9.6 1000 9.53 70 1.8
HAT12.5N 5-12.5 0.25 1200
HAT25N 10-25 0.5 700 12
HATFM5N With 2-5 0.1 1350 9.6
HATFM12.5N 5-12.5 0.25 1200
HATFM25N 10-25 0.5 700 12
HATR5N Without 2-5 0.1 280 9.6
HATR12.5N 5-12.5 0.25 250
HATR25N 10-25 0.5 140 12
HATRFM5N With 2-5 0.1 280 9.6
HATRFM12.5N 5-12.5 0.25 250
HATRFM25N 10-25 0.5 140 12
Contact Tohnichi for further information.
Note
1. Torque accuracy is based upon static torque by torque wrench tester.
2. Hexagon key is supplied as standard accessory.
3. Support handle is supplied as standard accessory for HAT25N, HATFM25N, HATR25N, AND HATRFM25N.
4. A battery is included. (BP-9 or BP-12) Battery charger is an sold separately. (BC-1).
5. Please use an impact socket.
6. Counterclockwise has no torque control; for loosening purpose only.
